High Clearance Front Sway Bar - for 2.5" to 16" lifted 2011-2026 Ford F250/350/450 4x4s

$ 1,199.95
$ 1,199.95
Sale Sold out
Have a Question
  • Vendor:

    Stryker Off Road Design

  • Type:

    Suspension Component

Description

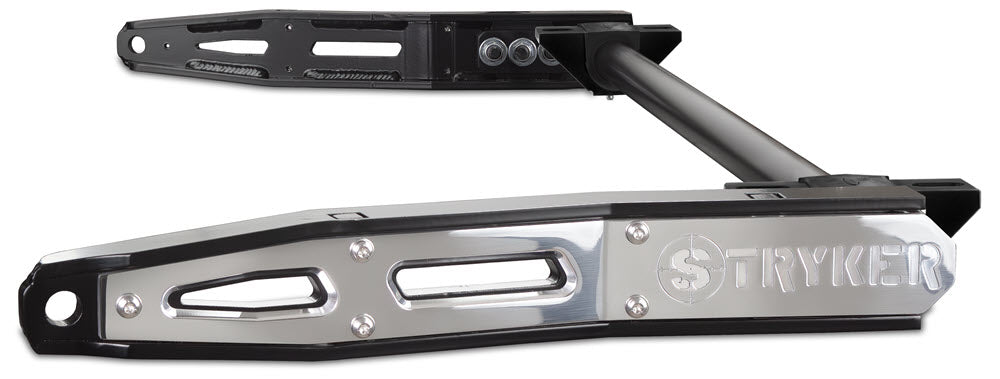

Introducing our new High Clearance Front Sway Bar for the 2011-2026 Ford F250/350/450 4x4


At the heart is 1.25" 4140 cold rolled steel, excellent for tensile strength and fatigue resistance. We pair this with billet aluminum mounting brackets which are greaseable, and a 1/4" steel constructed drop/relocation bracket to ensure your sway bar stays clear of your front coils.

Shown Below Installed with the optional Stryker Endlinks specifically for this kit.



The arms are made from 1/2" thick, laser cut steel with 1/4" thick x 1.5" wide steel gussets welded on top and bottom. This is a modular design, meant to be bolted and assembled. Simply attach the arms to the 1/2" thick weldments on the bar using the Grade 8 welded in studs.

In keeping with our sleek and "high clearance" design, we recessed the aluminum and machined faceplates to be flush with the arms. These provide more tire clearance than the OEM sway bar, especially on F450's! We feel our sway bar provides the perfect balance of control and comfort, ideal the many uses these Superduty trucks are meant for.

Available with either polished or black identity faceplates.

Black identity faceplates shown above.



Frame Brackets


Meant for lift heights ranging from 2.5" - 16" (must select lift height).

Optional Sway Bar Endlinks (Specific to this kit)


The optional endlinks are made from 1" solid aluminum round stock. These are threaded in each end to accept our 5/8" teflon lined heim joints. Excellent ability to pivot and twist as necessary.

CANNOT BE USED WITH THE FACTORY ENDLINKS!! You must add in our endlinks or use an endlink that has a side mount bolt like ours.

NOTES: If you already have our endlinks, then you do not need to add these at checkout. Requires at least 2.5" of front lift.
  • 1.25" 4140 cold rolled steel
  • 1/2" and 1/4" thick steel construction
  • Grade 8 welded in studs
  • Excellent torsional strength while providing on road comfort
  • Billet aluminum frame mounts
  • Drop brackets with slotted holes to position the sway bar perfectly and stay clear of the front coils
  • High Clearance design
  • Requires at least 2.5" of front lift
  • Endlinks are made from 1" solid aluminum and uses 5/8" teflon lined heims
Lift Height Ranges
  • 2.5" - 5"
  • 6" - 8"
  • 9" -12"
  • 13" - 16"


Features:

  • 1.25" 4140 cold rolled steel
  • 1/2" and 1/4" thick steel construction
  • Grade 8 welded in studs
  • Excellent torsional strength while providing on road comfort
  • Billet aluminum frame mounts
  • Drop brackets with slotted holes to position the sway bar perfectly and stay clear of the front coils
  • High Clearance design
  • Requires at least 2.5" of front lift
  • Endlinks are made from 1" solid aluminum and uses 5/8" teflon lined heims

Includes:
