FORD 4-LINK LIFT KIT - LONG ARM F250 F350 F450 F550
Couldn't load pickup availability
Description
4-Link Lift and Ladder Traction Bar with FRAME Mount Drop and Cradle. Available for all Model Years and 6" to 14" lifts.
New Identity Drop Cradle, shown with a 12" 4-Link Lift and Ladder Traction Bar. Available for 2023 to 2025 Model Years and 6" to 14" lifts.
We address everything in these kits. Stryker Smooth Ride coils with the Identity Series top or bottom spacers as needed are designed to mimic the factory specs and provide a great ride. Our rear blocks have the bumpstop pads built in to utilize the factory rear bumpstops that Ford designed in for the heavy hauling these trucks were designed for.
DROP BRACKET OPTIONS
Stryker Frame Mount - Long Arm - 6" to 14" all model years (Front and Rear shown)
Identity Series - Long Arm - 10" to 14" 2023 to 2025 (Front and Rear shown)

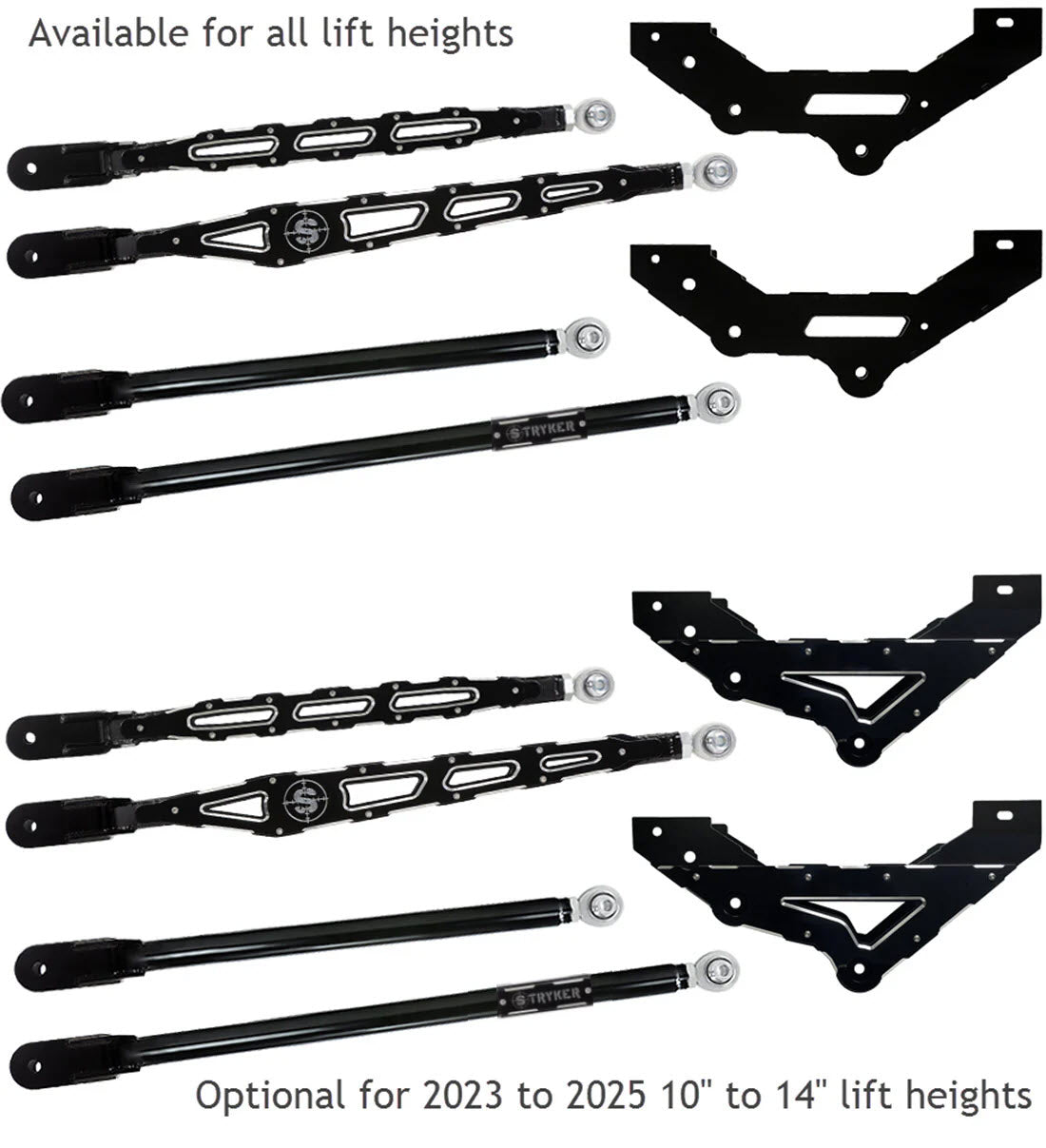

4-LINK ARM OPTIONS
IDENTITY SERIES 4-Link Arms
TUBE 4-Link ARMS with Identity Badging
FLOATING CRADLE
2023 to 2025 10" and up models (optional)
shown mounted to front and rear mating drop brackets.
FRAME MOUNT CRADLE
LADDER TRACTION BAR
DOM TUBE TRACTION BAR
DRAG LINK
Stryker's upgraded Drag Link utilizes a one-piece design, made from heavy duty steel, to correct the steering geometry on your lifted truck while also eliminating the weakness in the factory drag link: Supplied with lifts from 12" to 14"
TRANSFER CASE INDEX RING kit
Included with
- 2013-2018 indexing ring kit starting at 8" plus of lift
- 2019-2024 indexing ring at 6+ plus of lift
SHOCK OPTIONS
Stryker ORD - Level 4 Fox 2.0 IFP
This Level 4 is a Fox 2.0 Performance Series, IFP impact extruded, CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time. Black-anodized, CNC-machined 6061-T6 billet aluminum ends. The shaft is 5/8" hard chrome plated heat treated alloy steel.
Stryker ORD - Level 5 Fox 2.0 IFP Reservoir
This Level 5 Fox 2.0 Performance Series Reservoir, IFP aluminum smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Stryker ORD - Fox 2.5 Performance Elite Adjustable Piggy Back Reservoir Shocks (FRONT)
- 2.5-inch CNC Machined Aluminum Body
- DSC (dual speed compression) adjuster allows complete control of ride stiffness or softness
- External reservoir design separates shock oil from the high-pressure nitrogen for excellent performance
Stryker ORD - Fox 2.5 Performance Elite Adjustable Reservoir Shocks (REAR)
Rear Shock Specs:
- Extended Length: 29.830"
- Compressed Length: 18.350"
- Travel Length: 11.480"
- Top Mount: Eyelet
- Bottom Mount: Eyelet
Stryker ORD - Level 6 2.5" shocks!
Our 2.5" shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston. Level 6 2.5 shocks are only available as an option on our Dual Steering Stabilizers.
Stryker ORD-Level 7A 2.5 Piggyback Reservoir
Stryker ORD - Level 7 2.5" Reservoir shocks!
Stryker ORD - Level 8 2.5" Coilover Reservoir Stryker shocks!
Our shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality, although we offer rod ends with replaceable heims, per request, at no additional charge. Our shocks are re-buildable and re-valvable. However, we have done extensive testing and these come pre-valved specifically for your Super Duty.
NOW ALSO Available with Optional "Model" Badging
DUAL STEERING STABILIZERS
There is no consensus regarding single versus dual steering stabilizers. But lifted truck projects are usually accompanied with larger tire sizes. Larger tires bring a variety of physical demands for your F450 Super Duty Truck.
REAR LIFT BLOCKS
engineered by Stryker USA to match the demands of your Super Duty while keeping our focus on Rugged Style!
Kit Features:
- LIFETIME Replacement Warranty on BRACKETS! (excludes shocks* and powder coat). * Stryker 2.0 is the exception. This shock carries a lifetime warranty!
- BRACKETS MADE IN THE USA.
- CAD Designed and Engineered for the your Super Duty Rugged Style.
- Full SEAM Craftsman MIG Welded for the ULTIMATE in Strength and Durability.
- 1/4" and 3/8th" USA STEEL for the confidence you need!
-
Stryker's Craftsman Welders build these in HOUSE here in Marysville, TN!
- Powered Coated, CNC laser cut and bent in HOUSE in the USA under strict Stryker oversight and inspection.
- And designed for the EXACT Truck Model and Year to ensure all the measurements AND Components MATCH the requirement. Not a bunch of "OFF THE SHELF clamps" to make something kind of work!
* Lifetime Warranty of Stryker USA Lift Hardware excludes Powder Coat.
