8" Ram 2500 4-Link Lift Kit for 2014 TO 2018 DODGE RAM HEAVY DUTY

  • Sale
  • Regular price $ 5,699.95



Red 3500 Dodge with Stryker 4-Link in custom RED and Polished

8" Lift shown with custom powder coat and polished face plates 4-Link Arms.

We are happy to offer our newest suspension lift! It is our “Identity 4-Link” series. This new floating cradle Long Link System series is the perfect balance between those that need an extremely rugged suspension lift, yet still want it to represent the Ultimate in Style!

Do you want to improve your ride quality and looks at the same time?  We have the solution just for you! We are happy to release our newest generation of suspension lifts! Our NEW 4-Link series. This new new badged drop is perfect for those that need an extremely rugged suspension lift, yet still want it to be stylish!

We address everything in this kit. Our coils are designed to mimic the factory specs and provide a great ride. Our rear blocks have the bumpstop pads designed in for the heavy hauling these trucks were designed for. Our New Identity Series drop brackets for the radius are the beefiest in the industry!

Our 4 link kit is built 100% in house using only the finest materials. CAD designed and Plasma cut, we fabricate the mounts and arms from 1/4" U.S. steel. These are EXTREMELY heavy duty. Gusseted at the axle mount and MIG welded throughout, these can handle anything you can dish out. This lift features our signature, Patent Pending design.



RADIUS DROP BRACKET


 Dodge Ram 2500 3500 4-link drop bracketDodge Ram 4-Link RAD Drop Bracket
We went about it a little different. Instead of the drop bracket going up inside the factory radius arm pocket, we designed ours to mount uniquely outside. That adds width and strength. These features cost more to produce, but the end result is unmatched. All our steel is U.S. made and is at least ¼”, and in some instances even larger.


IDENTITY SERIES 4-Link ARMS

Dodge Ram 2500 3500 4-link arms

Our heavy duty 1.25" Heim Joints (largest used in the industry) are super strong joints and will hold up to years of punishment. The outer shell is a single forged piece. The inner flex ball is made from 8620 tool steel and rides on high quality polyurethane bushings, so you get the best of both worlds. Heavy-duty, hardened steel washers hold the joint together. Our joints are super flexible. A threaded grease fitting is provided for lubrication. The flex ball is drilled for cross lubrication flow from the shell to the link mount bolt. Each joint includes a jam nut!



Dodge 3500 with both the Gen 1 Long Link System AND the new Floating Cradle on an 8" lift for reference ONLY.

Dodge Ram 2500 3500 4-Link with Cradle and Long Link System Bar in Custom Red and Polished


NEW GEN 2 Long Link System Lower Arms

Dodge Ram 2500 3500 Gen 2Long Link System Lower Arms



Stryker's NEW Floating Cradle and Long Link System Bracket

Ram 2500 3500 Lift Kit Floating Traction Bar Cradle



Dodge Ram NEW 4-Link Floating Cradle Lift Kit





 CNC - Computerized Numerical Control Stryker Off Road Design Plasma Cutter

All Stryker 4-Link Arms and Drop Brackets are Made here at Stryker Maryville.

Proven Precise Performance

Our Star Lab is MADE in the USA just like Stryker Off Road Design Lift Kits. Our Star Lab machine is an HSP (High speed plasma) platform that enables Stryker the ability to handle ALL Lift Kit Fabrication completely in house in Maryville TN.

We take MADE IN AMERICA seriously.


Tommy Hydraulic Press Brake

Stryker's On Premise EXPERT Steel fabrication!

Of course when you are as passionate about quality control as Stryker, having in house steel fabrication such as this Industrial Tommy Press Brake is an absolute MUST! Tommy Industrial® hydraulic press brakes provide exceptional performance by utilizing high quality components, resulting in a precise machine that delivers accurate bends time and time again.

Stryker Craftsman USA Welders

Stryker Craftsman USA Welders

Stryker takes great pride in the work our Craftsman welders put into your lift components. We realize the you have entrusted us your investment and more importantly your safety.

These lift components will withstand the rugged treatment that your Ford Super Duty or Ram Dodge Heavy Duty truck will experience. Every weld we make keeps that commitment in focus..

And all Stryker USA Lift Components carry a lifetime replacement warranty *

SHOCK OPTIONS

Stryker ORD - Level 4 Fox 2.0 IFP

Fox 2.0 performance series shock for F250 lifted truck

This Level 4 is a Fox 2.0 Performance Series, IFP impact extruded, CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time. Black-anodized, CNC-machined 6061-T6 billet aluminum ends. The shaft is 5/8" hard chrome plated heat treated alloy steel.

The IFP piston on this Fox 2.0 shock is a race-developed high-flow piston design. The valving, seals, redundant sealing pack system main seal, wiper seal, scraper seal are all designed for superior performance.

The oil is JM92 Advanced Suspension Fluid for improved performance at variable temperatures. The bushings are quiet nitrile rubber allows for increased suspension articulation.



Stryker ORD - Level 5 Fox 2.0 IFP Reservoir

Fox 2.0 Performance Reservoir Shock for F250 Lift Trucks

This Level 5 Fox 2.0 Performance Series Reservoir, IFP aluminum smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

  • Body - 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
  • Body Plating - Clear-anodized for a durable finish
  • Reservoir - 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
  • Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft - 5/8" hard chrome plated heat-treated alloy steel
  • Piston - Race-developed high-flow piston design
  • Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bushings - Quiet nitrile rubber allows for increased suspension articulation



Stryker ORD - Level 6 2.5" shocks!

F450 Lift Kit 2-5 Shock L6

Our 2.5" shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston. Level 6 2.5 shocks are only available as an option on our Dual Steering Stabilizers.

Stryker ORD-Level 7A 2.5 Piggyback Reservoir

Shown with separately supplied decals attached.
Our 2.5" reservoir shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard. Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.

Stryker ORD - Level 7 2.5" Reservoir shocks!

F450 2.5 Reservoir Stryker badged shock
Our 2.5" reservoir shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard. Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.

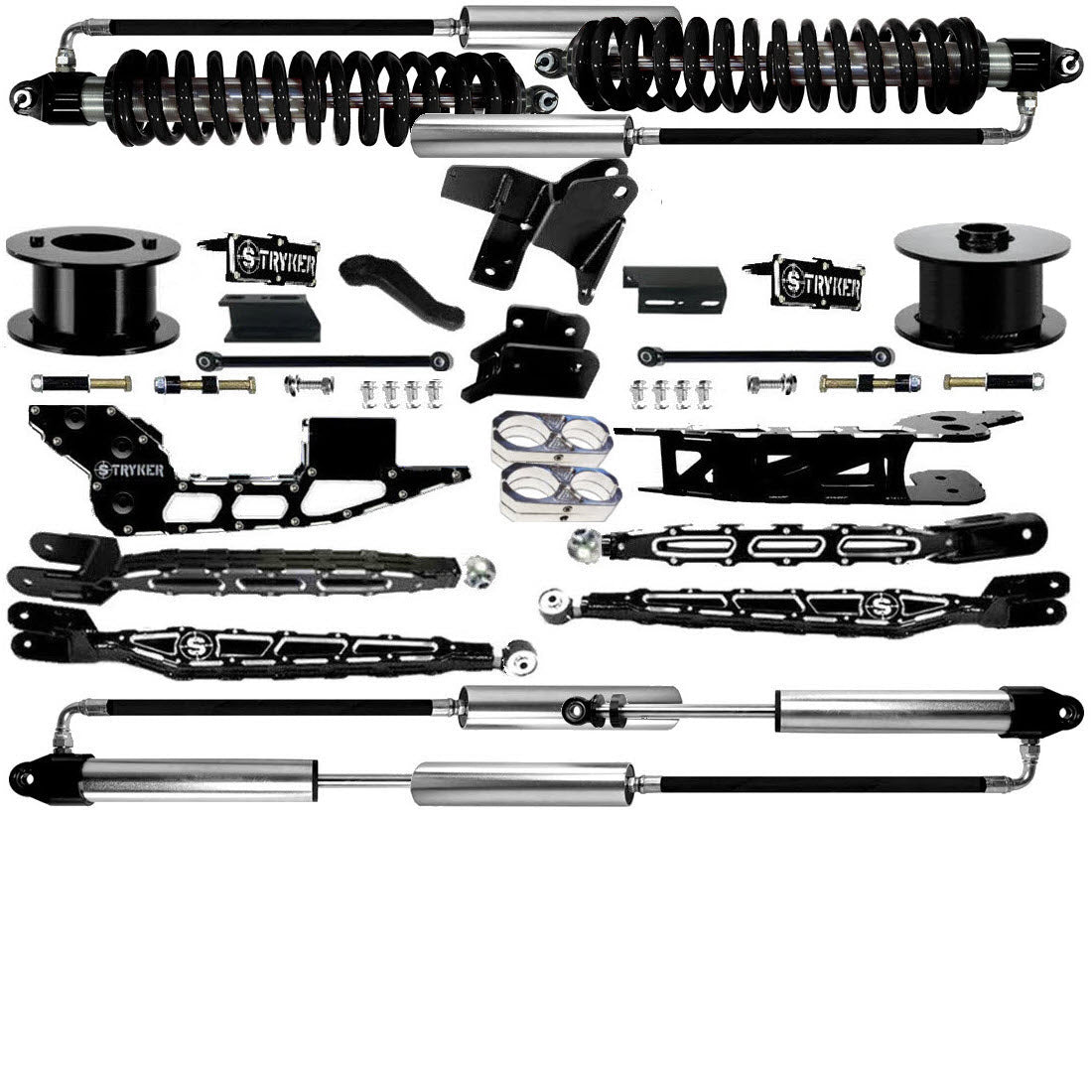

Stryker ORD - Level 8 2.5" Coilover Reservoir Stryker shocks!


F450 2.5 Coil Over Stryker Shocks

Our shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality, although we offer rod ends with replaceable heims, per request, at no additional charge. Our shocks are re-buildable and re-valvable.  However, we have done extensive testing and these come pre-valved specifically for your Super Duty. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard.  These shocks have been fully tested and perform as good as they look! Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.


DUAL STEERING STABILIZERS

There is no consensus regarding single versus dual steering stabilizers. But lifted truck projects are usually accompanied with larger tire sizes.

Larger tires bring a variety of physical demands for your Dodge 2500 Heavy Duty Truck

Vibration:
Vibration is the primary demand to focus on. The original excellent suspension on your 2500 can accommodate most of that vibration. But if you improve the handling and ride quality by dampening the added side to side motion of your tires that is the first place to address. Shock absorbers dampen the up and down movement of your Heavy Duty and they can also dampen the side movement of your larger tires.

Dual Versus Single:
Dual stabilizers dampen the vibrations better than a SINGLE shock tied to one side in OUR opinion. Is the improvement worth the added cost?

Of course it depends on several subjective INFORMED decisions. If your Lifted Heavy Duty is actually a daily driver then the performance improvement may not be required. But if you plan to build your 2500 with the capability of HEAVY OFF ROADING even if you don't go there then DUAL is likely your best investment. The cost ADDER is actually not significant compared to the value of your 2500. If your lifted truck has tires 35" or larger you are an excellent candidate to investigate a Steering Stabilizer even if Off Road is not a concern!.

And then there is the subjective issue of STYLE! What did you want to look at when you see the front of your 2500? Stryker's goal is to provide you with RUGGED STYLE™! We are committed to providing performance and style.

Dodge Ram 2500 V1 Dual Steering Stabilizer



Dual Steering Stabilizer Offered


Dodge Ram 2500 Dual Steering Stabilizer with Fox 2.0 Shocks

The Stryker V1 Off Road Design Dual Steering Stabilizer gives your truck better handling while adding to the Rugged Style of the suspension!

Our steering stabilizer provides better handling and control of oversized tires by reducing bump steer and front end vibration. It also reduces ball joint and tie rod wear and tear, and is an easy bolt on installation!

Just add the Lift Kit and separately add the dual steering stabilizer to your cart before checkout!

Features:

  • CAD Designed and laser cut from 1/4" and 3/8" steel
  • Reduces bump steer and front end vibration
  • Reduces ball joint and tie rod wear and tear
  • Simply and easy bolt-on installation
  • Comes with our Level 2 Shock as standard.
  • Made in the USA!



8" Lift Height EXTENDED SWAY BAR END LINKS - Add it to your cart to complete your 8" Lift Kit!

EXTENDED SWAY BAR END LINKS FOR DODGE RAM 2003 TO 2022 2500 3500 HEAVY DUTY LIFTED TRUCKS

Stryker Off Road Design is proud to bring you our new 1" OD billet aluminum heavy duty EXTENDED sway bar end links for the 2003 to 2022 Dodge Ram Heavy Duty 2500 and 3500!

This kit will UPGRADE your factory end links to our new Double Adjustable Heim Jointed Extended Sway Bar End Links. They fit

HIGH ARTICULATION

Heim joints used with appropriate alignment spacers swivel much further without the risk of breaking. The bearing is very unlikely to pull out in this design because all of the force is in the XY axis. There are virtually NO 90 degrees (right angle) forces.

This kit will upgrade the original ball-jointed, studded factory end links, which bind easy and are prone to breakage as the suspension cycles.

These will provide GREATER FLEXIBILITY and DURABILITY while maintaining the proper angles for OPTIMAL Ride Quality.

Ball Joint Disadvantages in End Link Designs.

LIMITED ROTATION
The OEM ball joints can limit active alignment required in End Link applications.

PULL OUT STRENGTH
The stud of a ball joint can pull out of the housing easier than the bearing on a Heim joint in End Link applications.


Of course our extended sway bar end links will also improve the appearance of your 2500 3500 Heavy Duty suspension with Stryker's Rugged Style.




    Stryker Off Road Designs' REAR FABRICATED Control Arms for Dodge Ram 2500 heavy duty trucks!



    Dodge Ram 2500 Rear I-Beam Fabricated Control Arms for 4" Lift

    These are CAD designed craftsman Welded fabricated control arms. They are designed to fit the front of a Dodge Ram 2500 4x4 with 7" to 10".   The 7" to 10" is similar to the stock arm length and helps re-center the axle.

    Our ARMS are guaranteed to perfectly fit your year model truck (year models have different sizes of hardware, requiring different inner diameter sleeves for optimal fitment).

    Some lower cost competitors may use cheaper rolled sleeves with a seem can split apart, due to stress from movement (see comparison images), shredding your bushings from within!

    Many competitors even use lower cost Rubber Bushings.

    These arms are the precise length to maintain your year axel geometry for stock to 6" and 7" to 10" lift height - Each arm is jig-built, using precisely measured materials, and is inspected before being shipped. Buy with confidence! That's correct, Stryker also designs and manufacturers a Fabricated control arm to match your truck. In OUR world of Rugged Style ONE SIZE DOES NOT FIT ALL TRUCKS

    This is for a set of 4, includes 2 REAR uppers and 2 REAR lowers


    Stryker's 8" Dodge 2500 RAD Identity Series also offers optional badging kits for the rear control arms.


    Dodge 2500 Rear ARM Radius Identity Badging

    The Identity Badging does require drilling, but not all fasteners pass thru the faceplate. Many are decorative so installing these are not that hard. Just provide labor and a drill!

    Our “RAD” series (Radius Arm) Badge Series line is the perfect style add on to give your truck that rugged suspension lift look! In keeping with our entire Identity line, these are not steel, but 6061 aluminum, laser cut, coated, then CNC milled, then clear coated! A lengthy process, but one that separates us from the rest....and will do so for your truck as well.

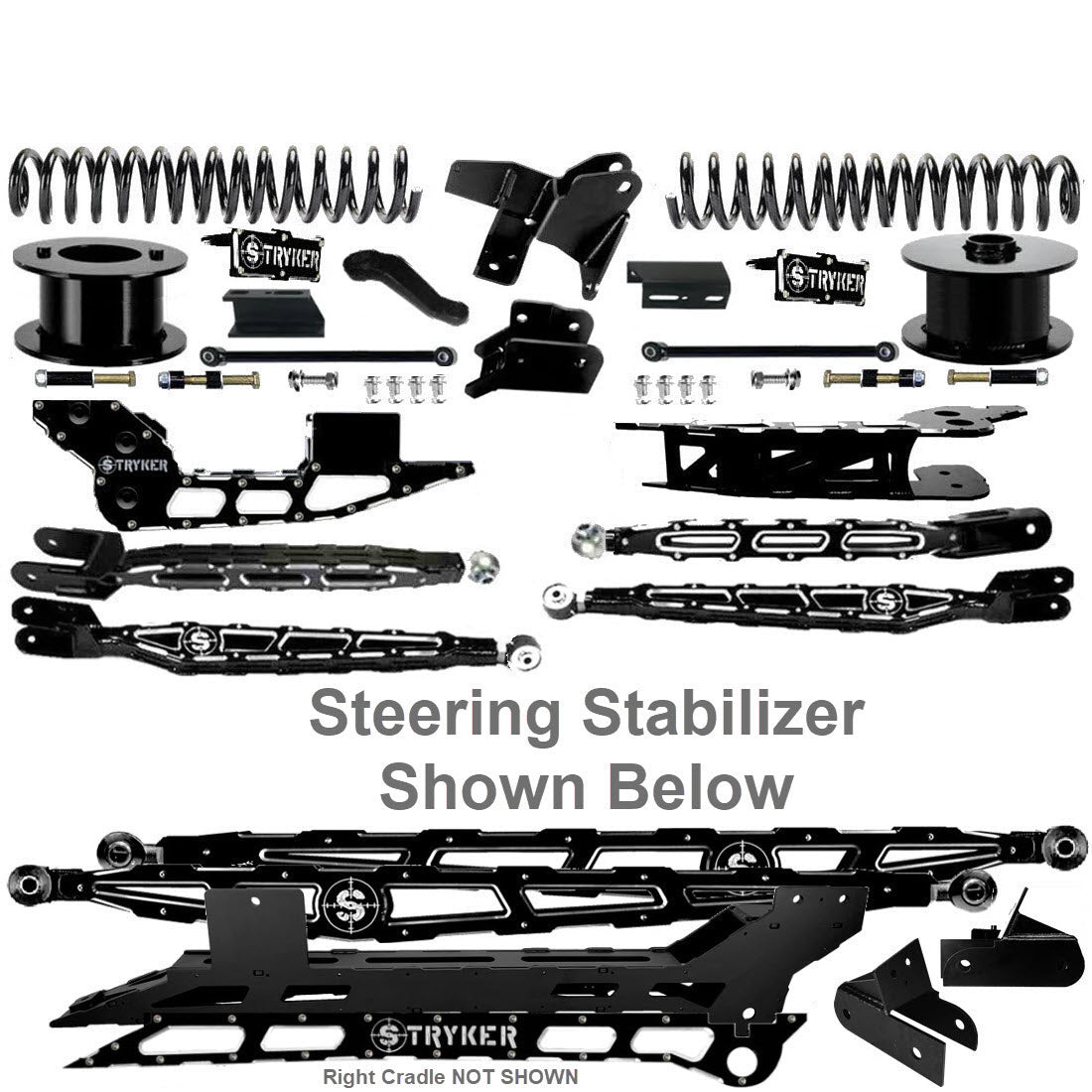

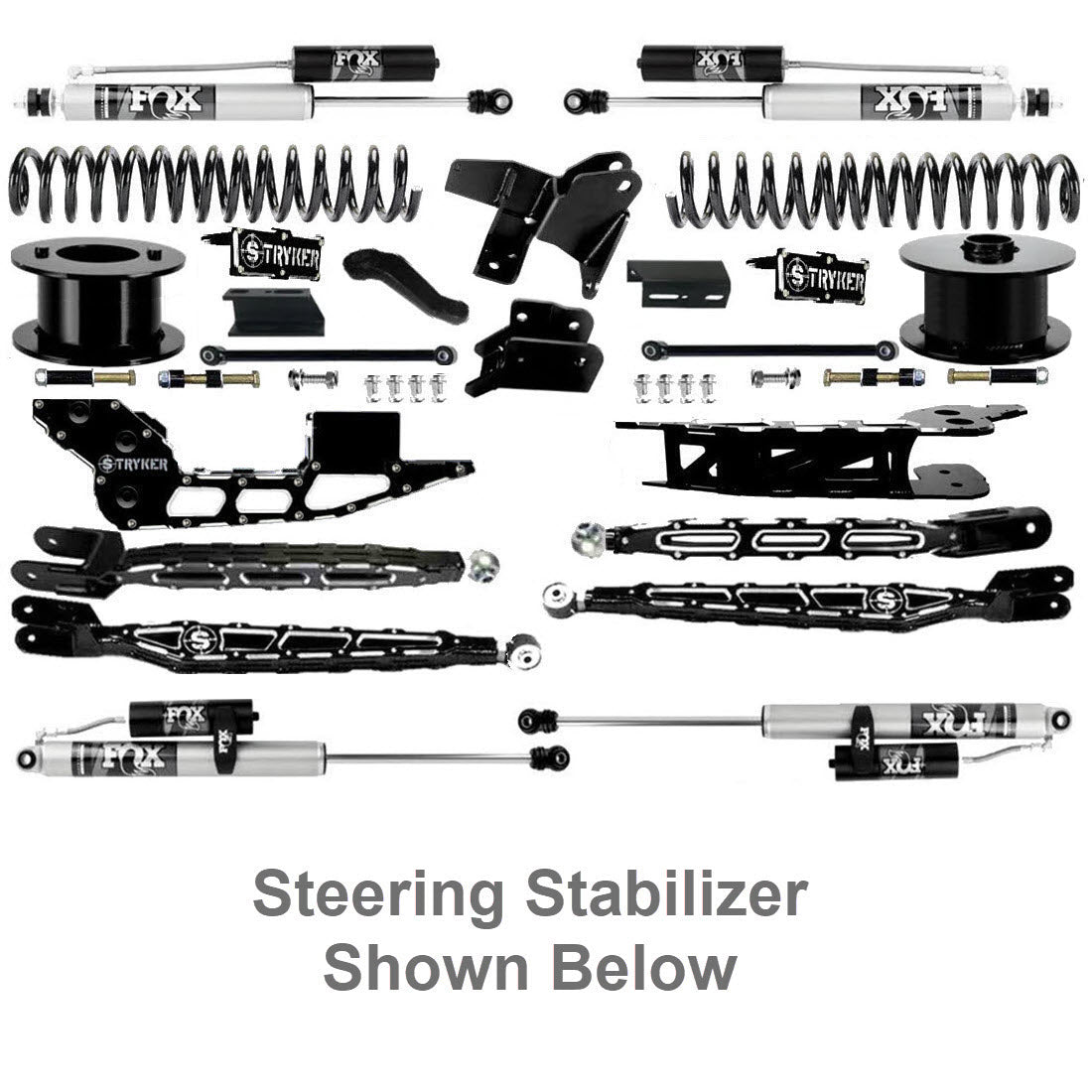

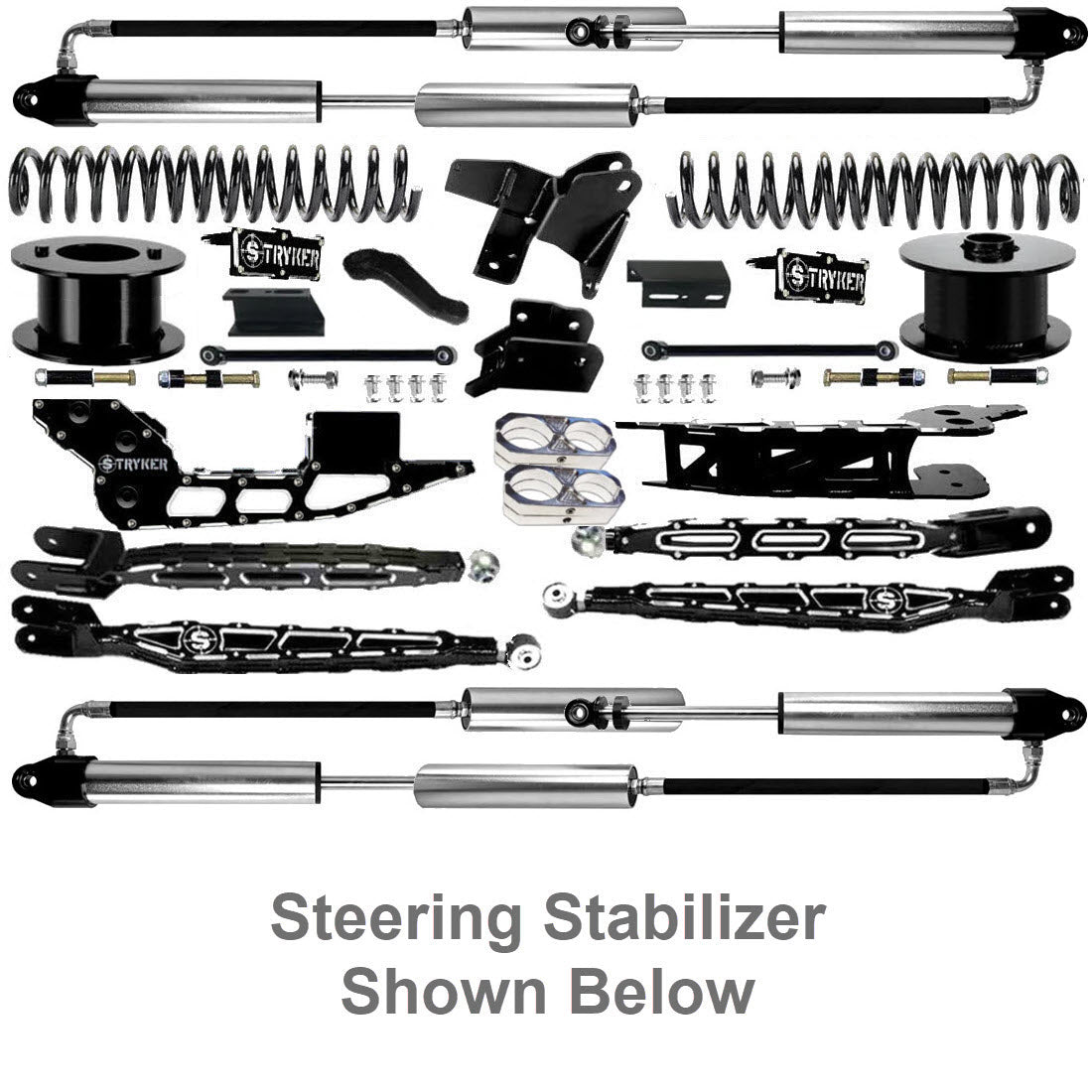

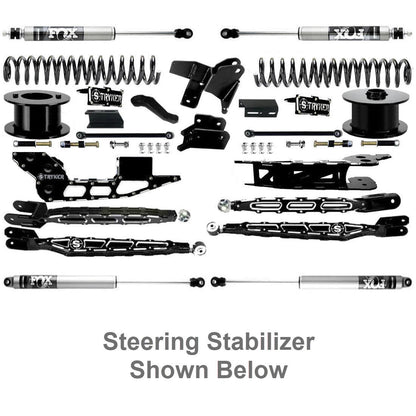

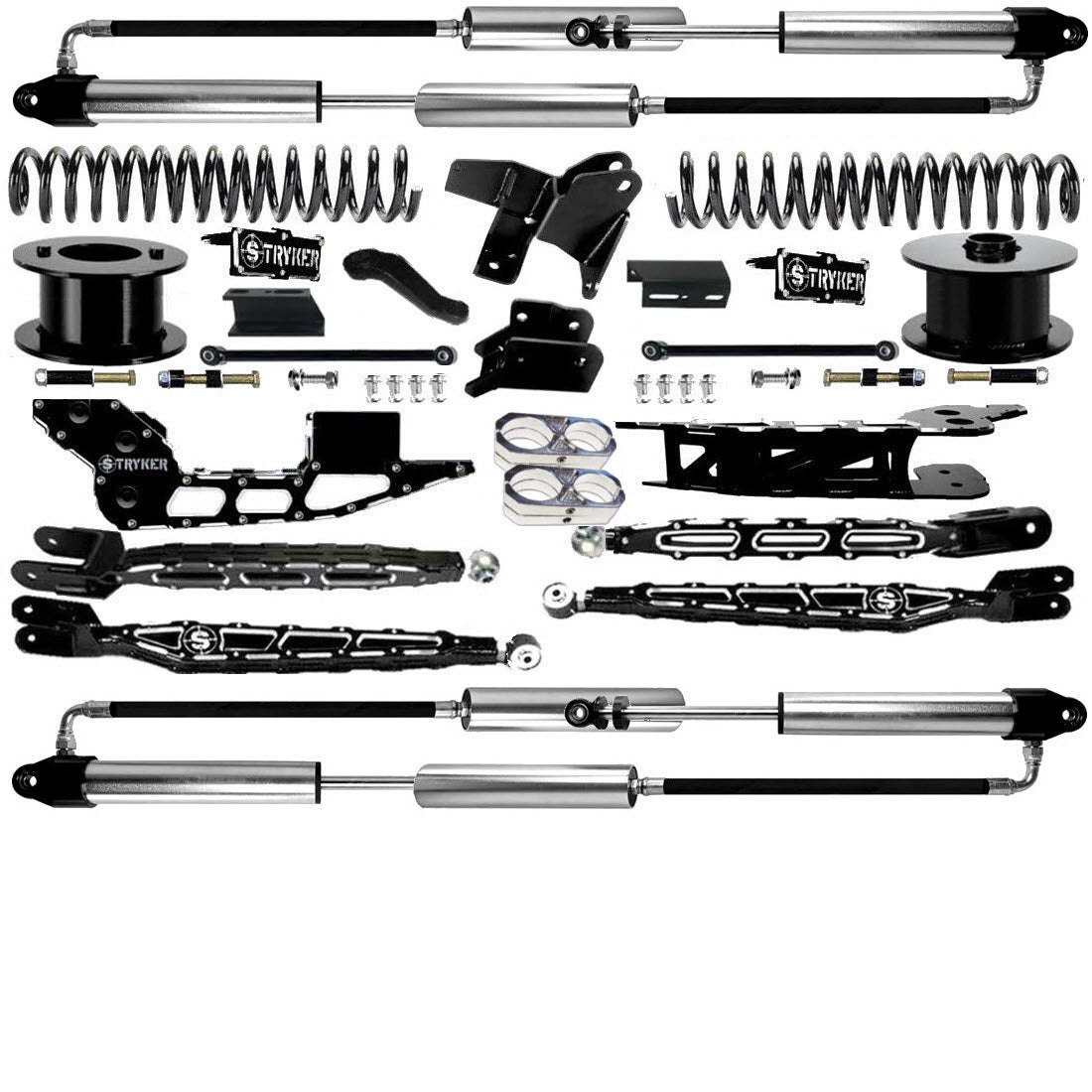

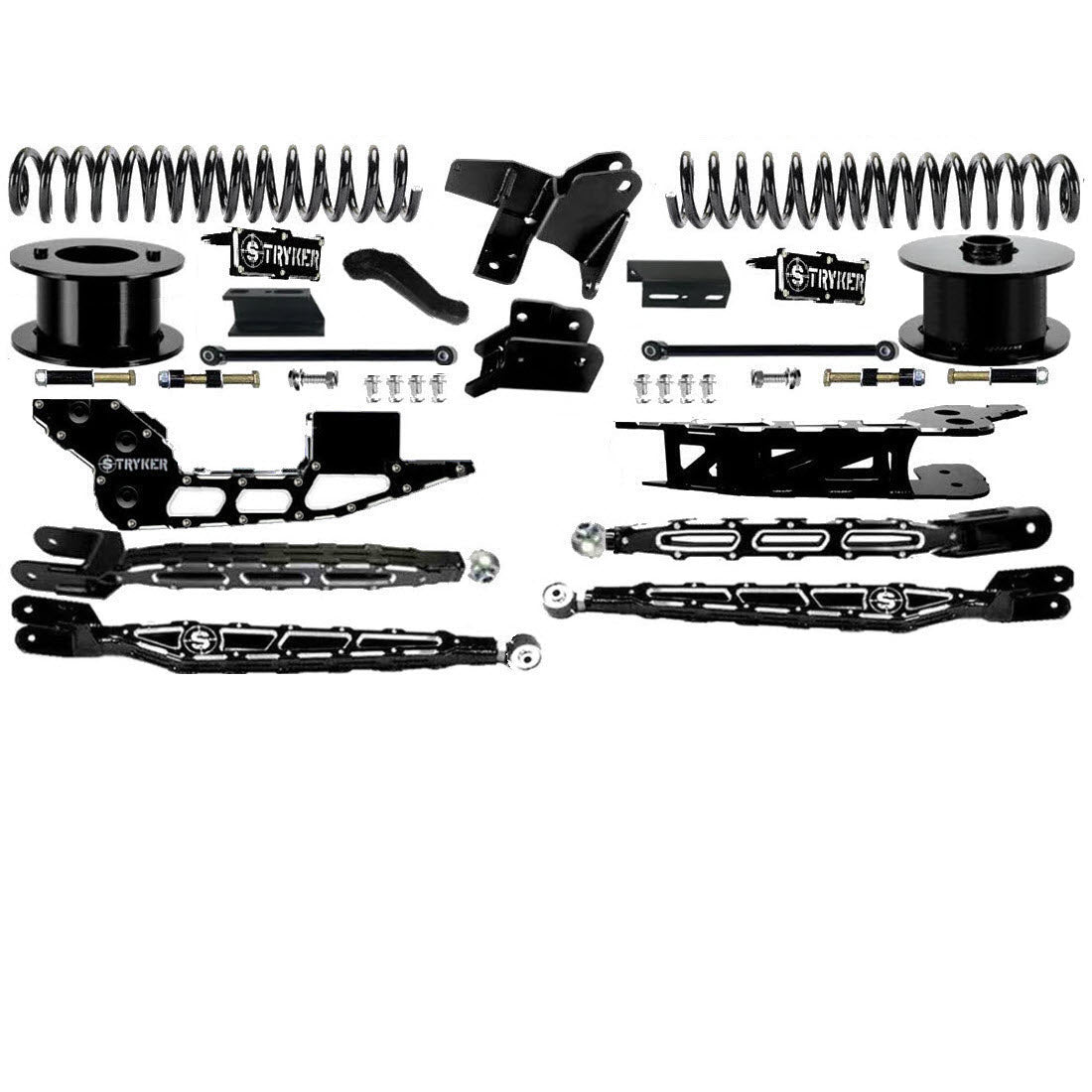

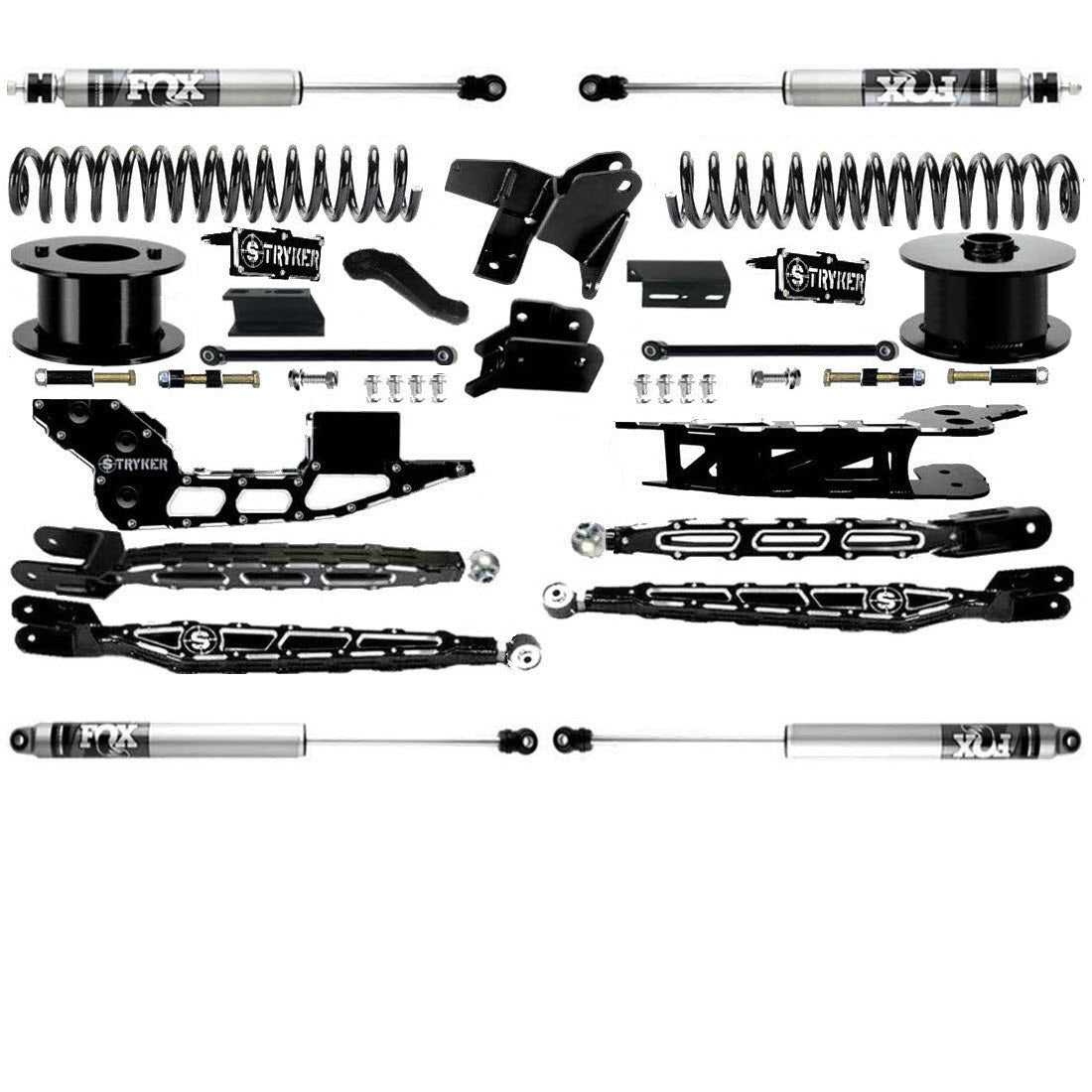

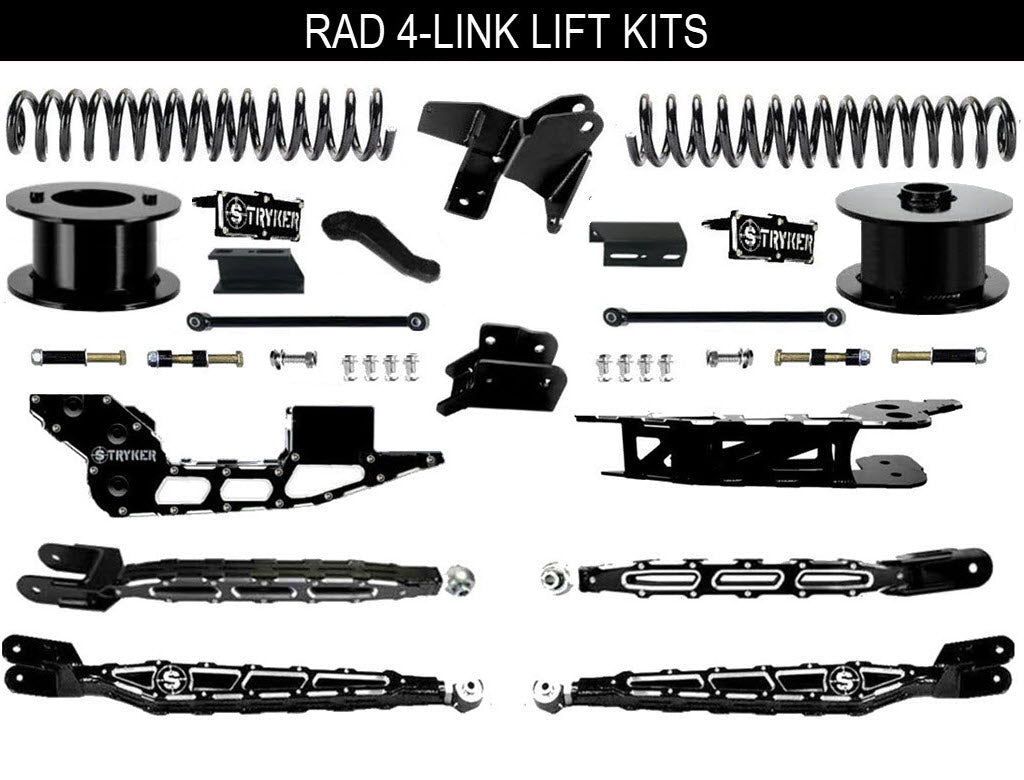

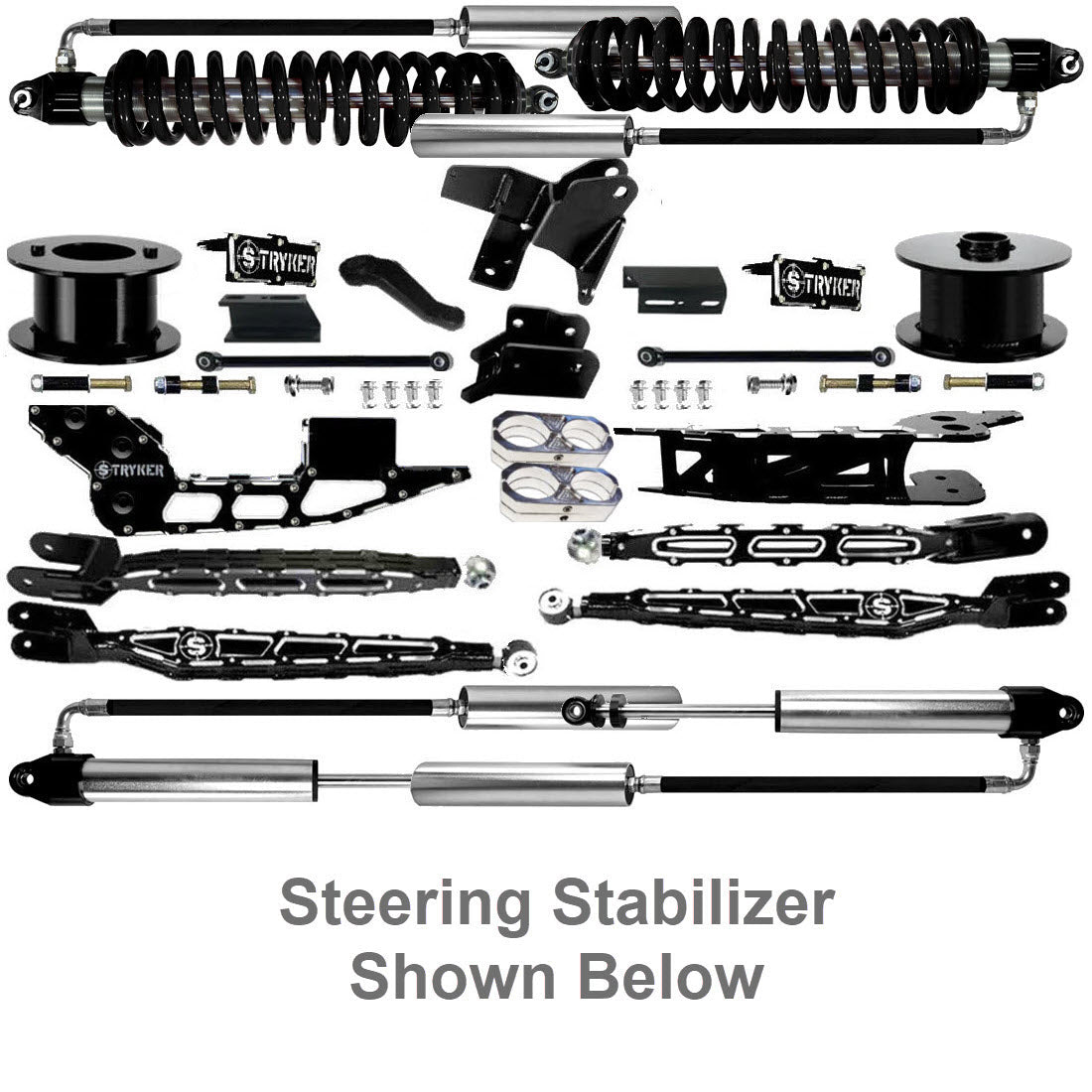

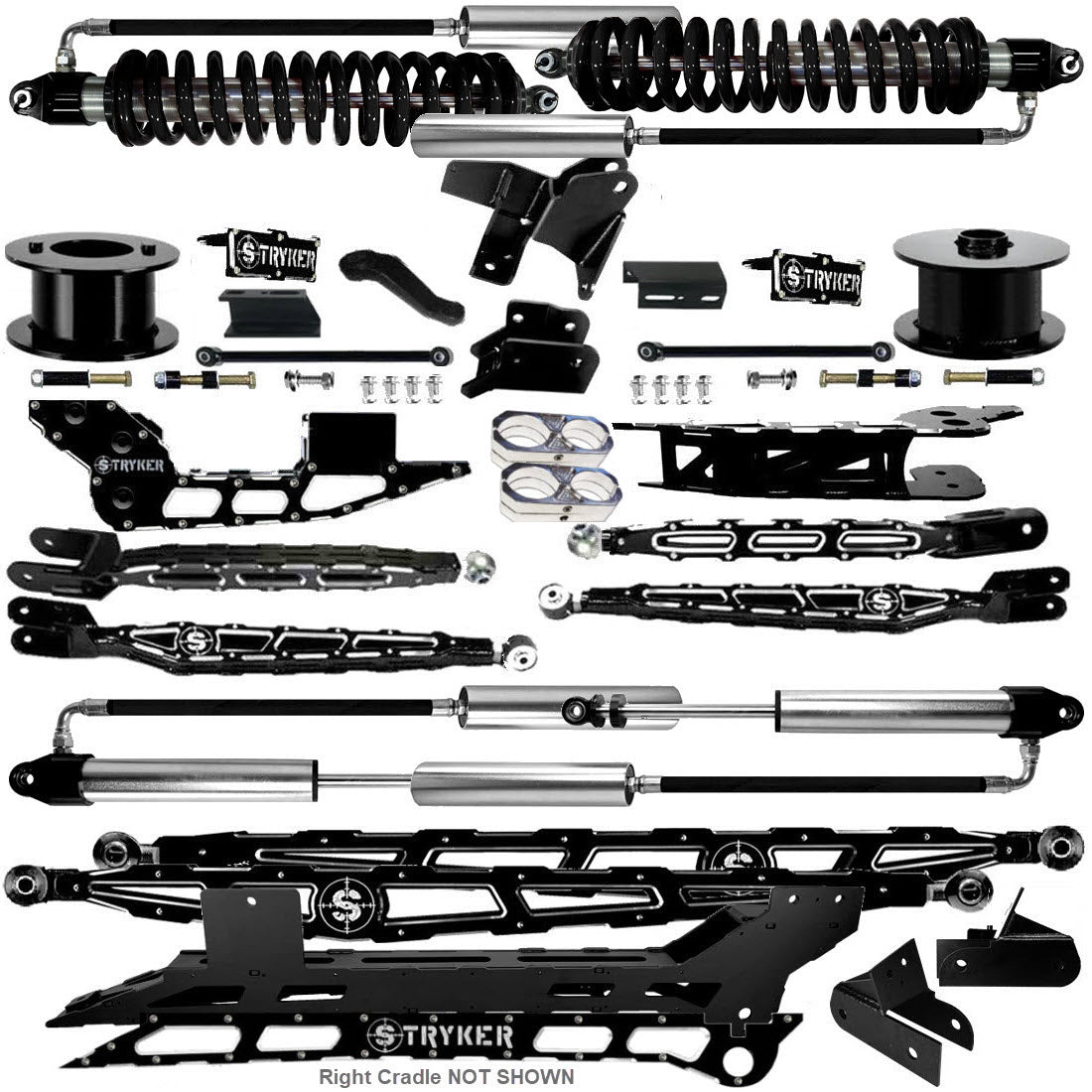

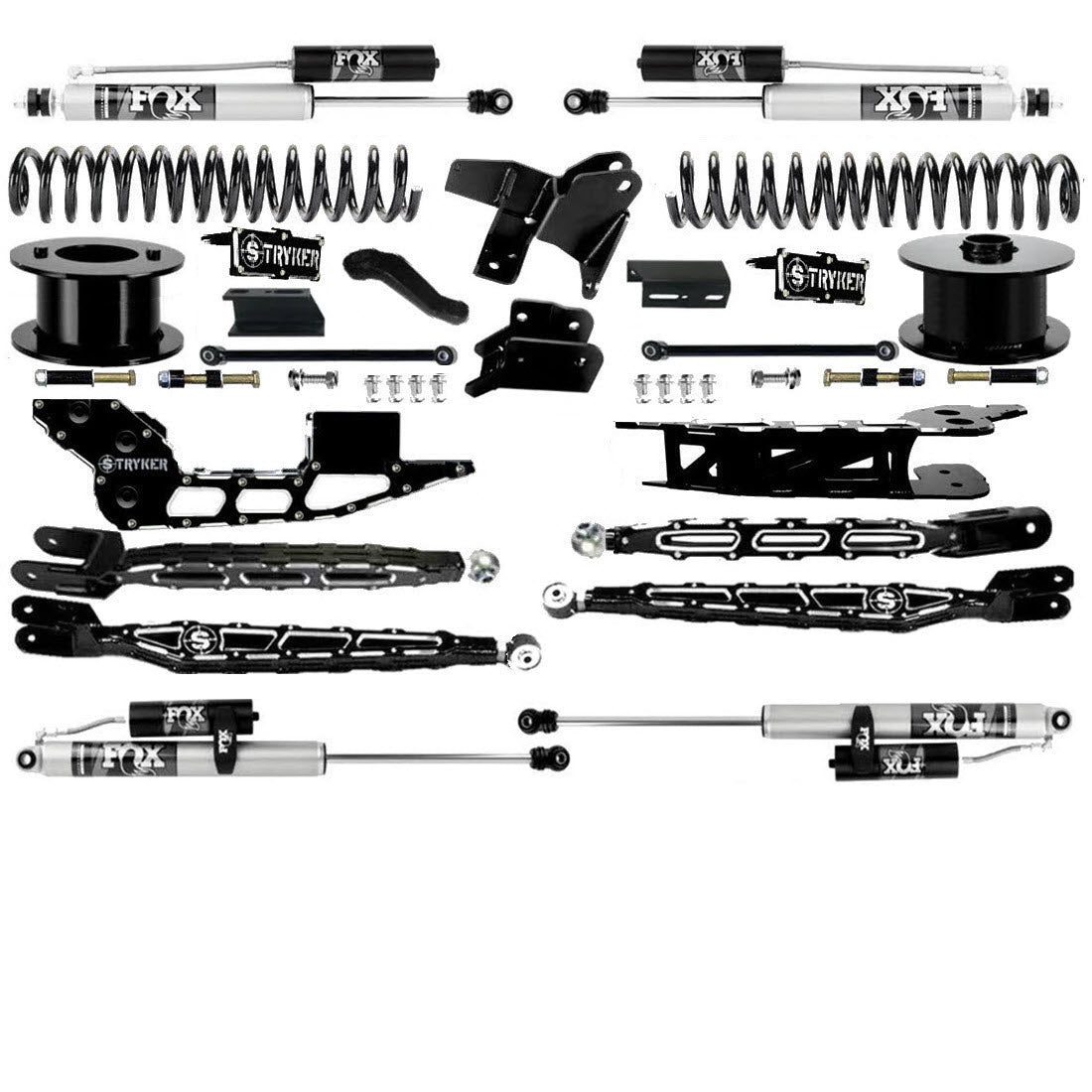

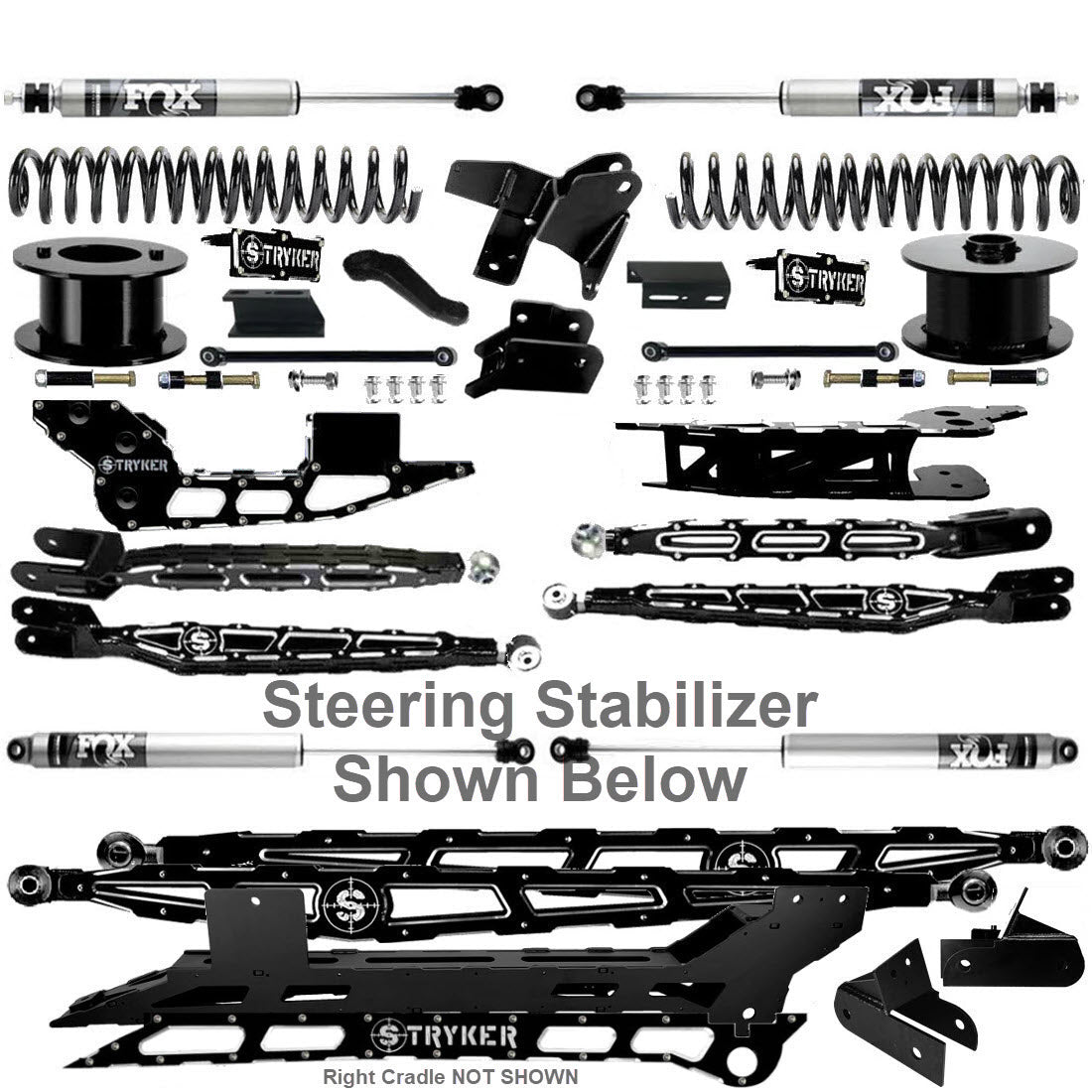

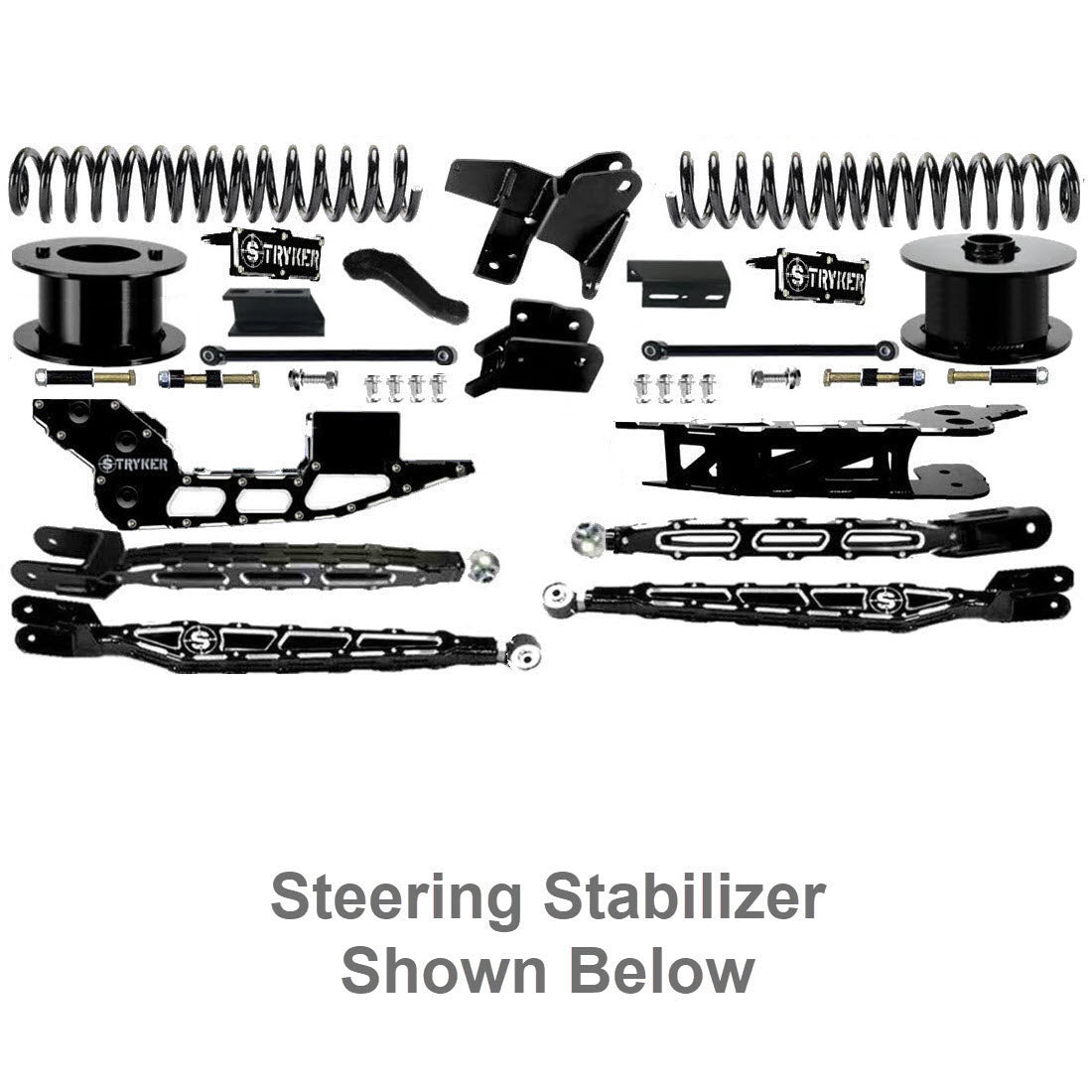

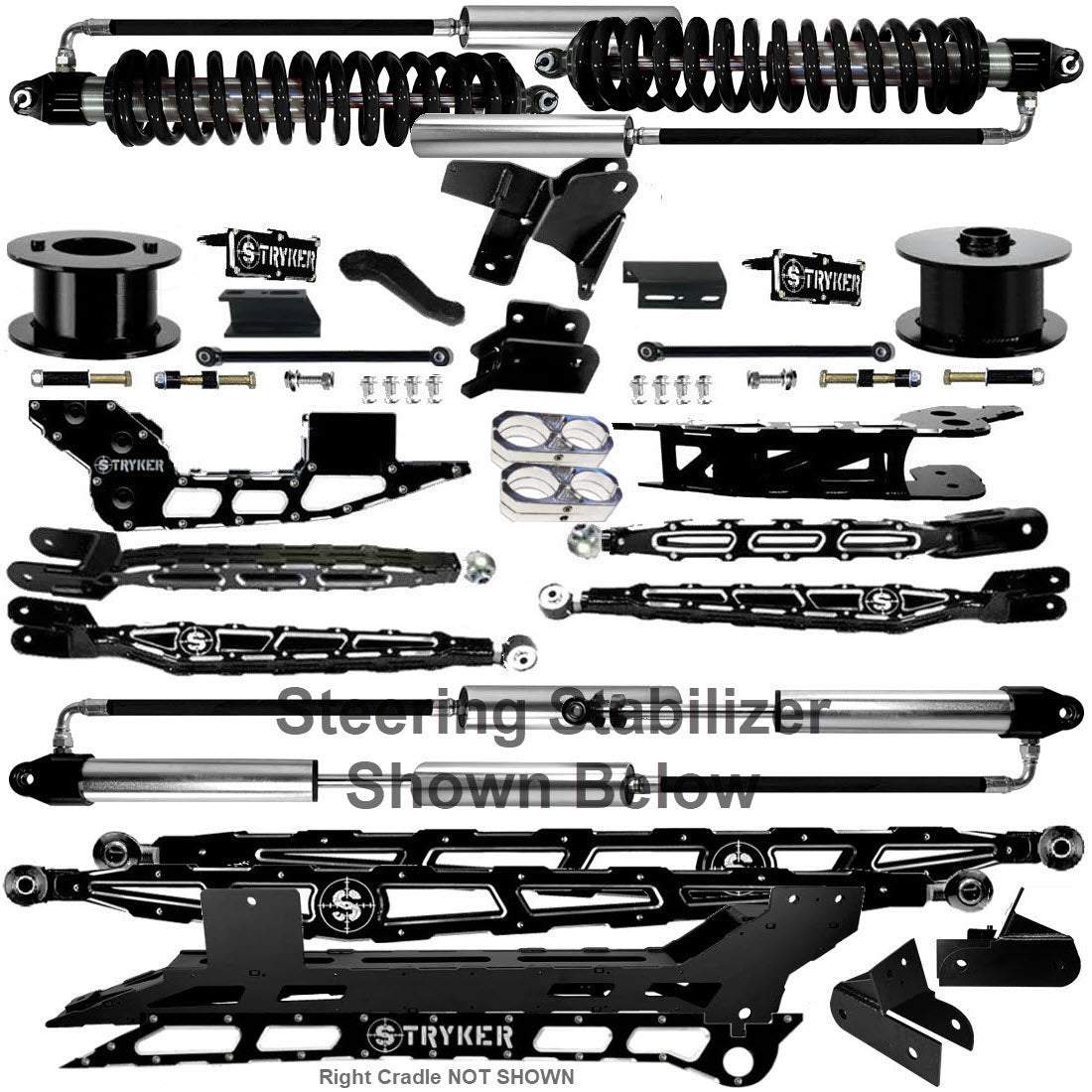

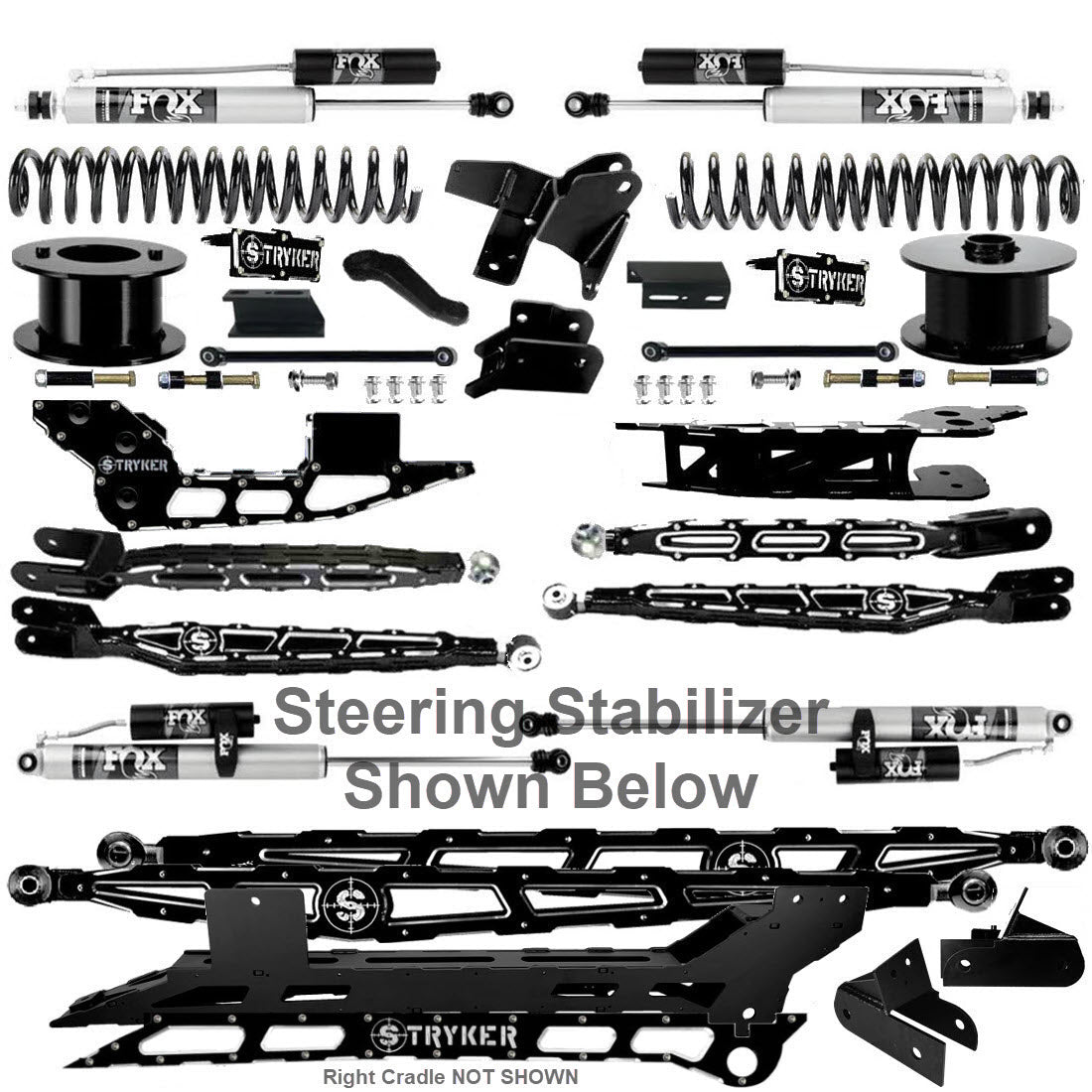

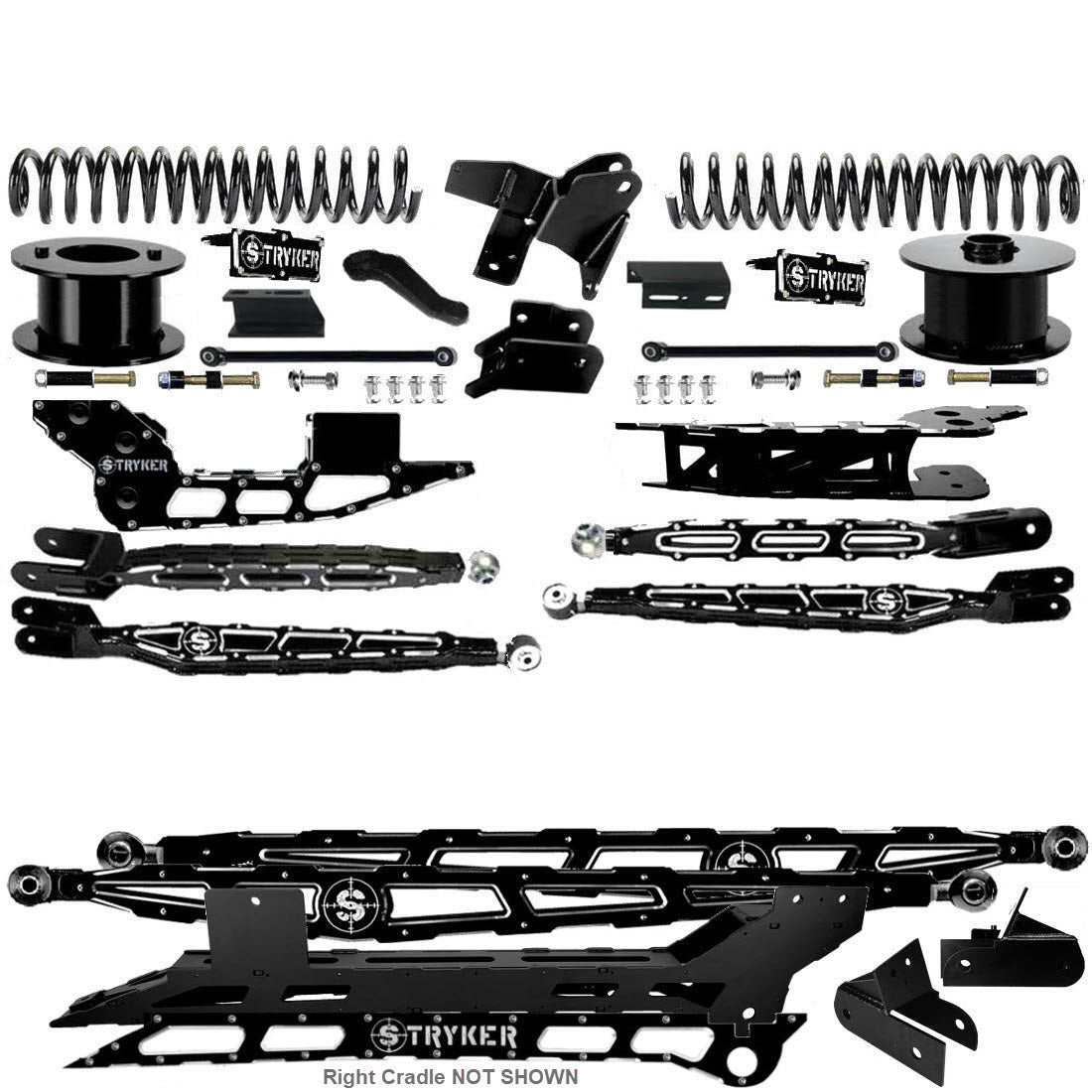

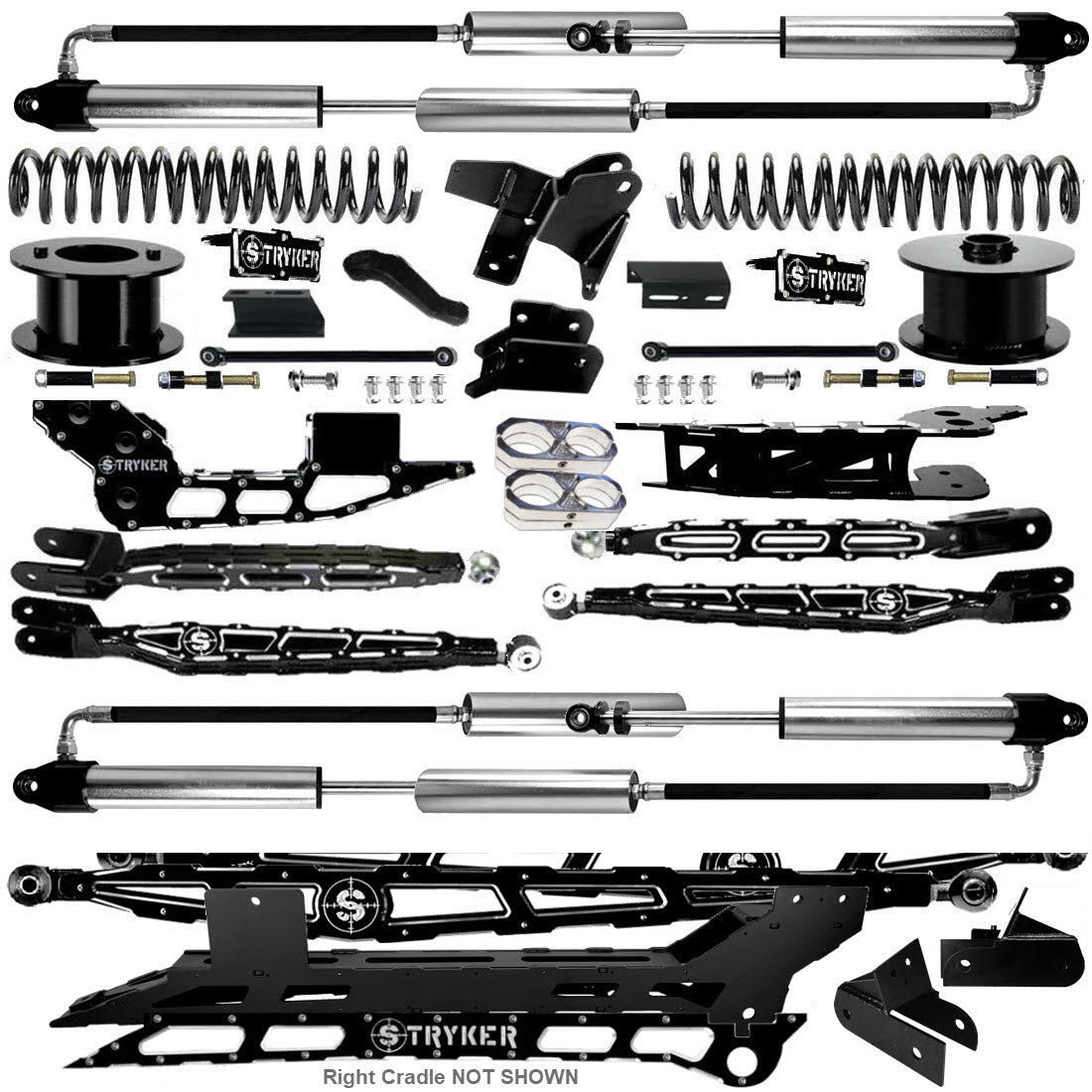

        Complete RAD Lift Kit with Rear Block CONTENTS:

        • (qty 2) 8” smooth ride coils
        • (qty 2) Stryker Identity Series 4-Link Top Arms
        • (qty 2) Stryker Identity Series 4-Link Lower Bottom Arms
        • (qty 2) Identity Series 3/16" Top Coil Badges
        • (qty 2) Shock Extensions (when Stryker Shocks are not included)
        • (qty 1) Pitman Arm
        • (qty 2) Sway Bar Drop Brackets
        • (qty 2) 5.75" Rear UPPER Coil Spacers
        • (qty 2) Rear End Links
        • (qty 1) Index ring/crossmember
        • (qty 4) Brake lines
        • (qty 2) “RAD” HD drop brackets
        • (qty 1) Rear track bar relocation bracket
        • (qty 2) OPTIONAL Gen 2 Long Link System Lower Rear Control Arms Bars
        • (qty 2) OPTIONAL New Floating Cradle
        • (qty 2 sets) OPTIONAL STRYKER billet and machined REAR 4 link faceplates with stainless hardware (Can be added Separately)
        • All other necessary hardware

          Fitment:

          • 2014-2018 Dodge Ram F2500 Heavy Duty



          If you have any questions, please give us a call at (865) 233-0076 or email at sales@strykerordesign.com with any questions you may have.

           All of our kits are built-to-order, therefore we can create a true custom kit you.
          Due to the complex and unique nature of of these kits, please know that there is an 8 week lead time for this product.


            Feel free to contact us at sales@strykerordesign.com
            or (865) 233-0076 with any questions!
