6" RAD F450 4-LINK LIFT KIT 2017-2022 SUPER DUTY

  • Sale
  • Regular price $ 4,899.95




F450 RAD F450 6 inch Lift Kit

We are happy to offer our newest suspension lifts! It is our “Identity 4-Link” series. This new series is the perfect balance between those that need an extremely rugged suspension lift, yet still want it to represent the Ultimate in Style!

We address everything in this kit. Our 6" Stryker Ride coils with the Identity Series top spacer are designed to mimic the factory specs and provide a great ride. Our rear blocks have the bumpstop pads built in to utilize the factory rear bumpstops that Ford designed in for the heavy hauling these trucks were designed for.

We went about it a little different. Instead of offering a leaf adder option we chose to raise the height of your existing leaf springs. Stryker Engineering found that manipulating the OEM Factory Springs resulted in a reduced ride experience for very little lift height improvement!



LADDER TRACTION BAR with Slim Bracket

F450 Ladder Traction Bar Option 4-5 inch lift

LADDER TRACTION BAR with NEW Rad Floating Cradle

F450 4-5 inch lift kit with Rad Cradle

RADIUS DROP BRACKET

F450 8" 4-Link Radius Arm Drop Bracket
We went about it a little different. Instead of the drop bracket going up inside the factory radius arm pocket, we designed ours to mount uniquely outside. That adds width and strength. These features cost more to produce, but the end result is unmatched. All our steel is U.S. made and is at least ¼”, and in some instances even larger.

IDENTITY SERIES 4-Link ARMS

F450 8 Inch Lift Kit Front 4-link

IDENTITY SERIES LADDER TRACTION BARS

F450 Ladder Traction Bar - Long Bed

NEW IDENTITY SERIES FLOATING CENTER CRADLE

F450 8 inch RAD 4-link Floating Cradle
CNC - Computerized Numerical Control Stryker Off Road Design Plasma Cutter

All Stryker 4-Link Arms and Drop Brackets are Made here at Stryker Maryville.

Proven Precise Performance

Our Star Lab is MADE in the USA just like Stryker Off Road Design Lift Kits. Our Star Lab machine is an HSP (High speed plasma) platform that enables Stryker the ability to handle ALL Lift Kit Fabrication completely in house in Maryville TN.

We take MADE IN AMERICA seriously.

Stryker F450 Lift Kit Hardware Made in the USA

Stryker Craftsman USA Welders

Stryker Craftsman USA Welders

Stryker takes great pride in the work our Craftsman welders put into your lift components. We realize the you have entrusted us your investment and more importantly your safety.

These lift components will withstand the rugged treatment that your Ford Super Duty or Ram Dodge Heavy Duty truck will experience. Every weld we make keeps that commitment in focus..



And all Stryker USA Lift Components carry a lifetime replacement warranty *

Stryker Lifetime Warranty on F450 Lift Kit mad in the USA Hardware

SHOCK OPTIONS

Stryker ORD - Level 4 Fox 2.0 IFP

Fox 2.0 performance series shock for F250 lifted truck

This Level 4 is a Fox 2.0 Performance Series, IFP impact extruded, CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time. Black-anodized, CNC-machined 6061-T6 billet aluminum ends. The shaft is 5/8" hard chrome plated heat treated alloy steel.

The IFP piston on this Fox 2.0 shock is a race-developed high-flow piston design. The valving, seals, redundant sealing pack system main seal, wiper seal, scraper seal are all designed for superior performance.

The oil is JM92 Advanced Suspension Fluid for improved performance at variable temperatures. The bushings are quiet nitrile rubber allows for increased suspension articulation.



Stryker ORD - Level 5 Fox 2.0 IFP Reservoir

Fox 2.0 Performance Reservoir Shock for F250 Lift Trucks

This Level 5 Fox 2.0 Performance Series Reservoir, IFP aluminum smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

  • Body - 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
  • Body Plating - Clear-anodized for a durable finish
  • Reservoir - 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
  • Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft - 5/8" hard chrome plated heat-treated alloy steel
  • Piston - Race-developed high-flow piston design
  • Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bushings - Quiet nitrile rubber allows for increased suspension articulation



Stryker ORD - Level 6 2.5" shocks!

F450 Lift Kit 2-5 Shock L6

Our 2.5" shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston. Level 6 2.5 shocks are only available as an option on our Dual Steering Stabilizers.

Stryker ORD-Level 7A 2.5 Piggyback Reservoir

Shown with separately supplied decals attached.
Our 2.5" reservoir shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard. Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.

Stryker ORD - Level 7 2.5" Reservoir shocks!

F450 2.5 Reservoir Stryker badged shock
Our 2.5" reservoir shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard. Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.


Stryker ORD - Level 8 2.5" Coilover Reservoir Stryker shocks!


F450 2.5 Coil Over Stryker Shocks

Our shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality, although we offer rod ends with replaceable heims, per request, at no additional charge. Our shocks are re-buildable and re-valvable.  However, we have done extensive testing and these come pre-valved specifically for your Super Duty. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard.  These shocks have been fully tested and perform as good as they look! Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.




DUAL STEERING STABILIZERS

There is no consensus regarding single versus dual steering stabilizers. But lifted truck projects are usually accompanied with larger tire sizes. Larger tires bring a variety of physical demands for your F450 Super Duty Truck

Vibration:
Vibration is the primary demand to focus on. The original excellent suspension on your F450 can accommodate most of that vibration. But if you improve the handling and ride quality by dampening the added side to side motion of your tires that is the first place to address. Shock absorbers dampen the up and down movement of your Super Duty and they can also dampen the side movement of your larger tires.

Dual Versus Single:
Dual stabilizers dampen the vibrations better than a SINGLE shock tied to one side in OUR opinion. Is the improvement worth the added cost?

Of course it depends on several subjective INFORMED decisions. If your Lifted Super Duty is actually a daily driver then the performance improvement may not be required. But if you plan to build your Super Duty with the capability of HEAVY OFF ROADING even if you don't go there then DUAL is likely your best investment. The cost ADDER is actually not significant compared to the value of your F450. If your lifted truck has tires 35" or larger you are an excellent candidate to investigate a Steering Stabilizer even if Off Road is not a concern!.

f450 Dual Steering Stabilizer with Fox Shocks


And then there is the subjective issue of STYLE! What did you want to look at when you see the front of your F450? Stryker's goal is to provide you with RUGGED STYLE™! We are committed to providing performance and style. Review our V1 and V2 offerings including 4 levels of shock upgrades.

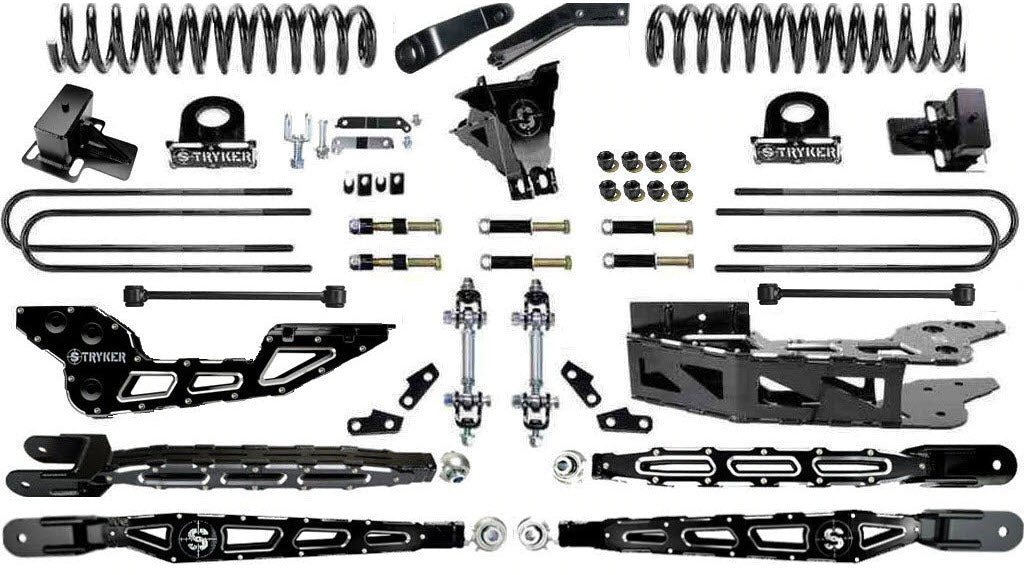

Base Kit Contents:
  • (qty 2) 6” smooth ride coils
  • (qty 2) Stryker Identity Series 4-Link Top Arms
  • (qty 2) Stryker Identity Series 4-Link Bottom Arms
  • (qty 1) Track bar drop bracket
  • (qty 1) Drop pitman arm
  • (qty 2) Replacement HD sway bar endlinks with “extreme articulation” feature
  • (qty 2) “Badged” HD drop brackets
  • (qty 4) bracket shims
  • (qty 2) Front Sway Bar Links
  • (qty 1) FBracket system to retain OEM steering stabilizer (not included when Dual Steering Stabilizer Included)
  • (qty 2) Rear blocks with built in HD bumpstop pads
  • (qty 2) Brakeline drop brackets
  • (qty 4) U-bolts with hardware
  • All other necessary hardware



Fitment:

  • 2017-2022 Ford F450 Super Duty 4WD
  • 2017-2022 Ford F550 Super Duty 4WD



* Lifetime Warranty of Stryker USA Lift Hardware excludes Powder Coat.
