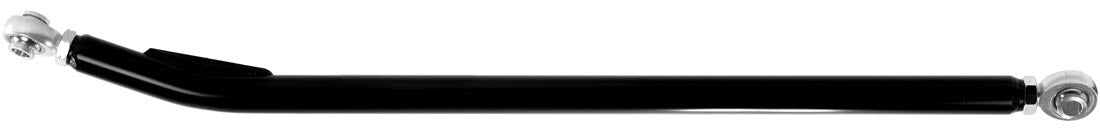

10-12" Lift Height Adjustable Track Bar for Dodge/RAM 4wd 2013-2026 3500 and 2014-2026 2500 3500

Description

Stryker Off Road Design is proud to bring you our new, heavy wall, chromoly and gusseted adjustable track bar exclusively for trucks lifted 10-12"! This is the perfect solution for those looking to upgrade from the OEM track bar or have an aftermarket bar that is just not designed for 10-12". The issue you'll run into when taking a kit passed 8" is the track bars' increased angle makes contact with the coil bucket on the passenger side as the track bar goes into its mount. This causes a rough ride and a clunking noise as the suspension cannot droop when hitting a bump as it's maxed out by making contact. This bar is made to go into the OEM axle mount at just the right angle to allow articulation and for the axle to still move freely as it hits bumps. It is also made longer to still center the axle at 10-12" of lift. We use 7/8" 3-piece Teflon lined heims with custom misalignments to allow this bar to be mounted into the axle and track bar bracket at frame with zero modifications. Simply remove the old track bar, replace with this and re-use your hardware.

All the same other modifications to ad as the one I listed above. Exception is the Features: Remove this:

•  Perfect for 5" to 8" of Lift with No Track Bar Drop Bracket (10" with drop bracket)

HIGH ARTICULATION

Heim joints used with appropriate alignment spacers swivel much further without the risk of breaking. The bearing is very unlikely to pull out in this design because all of the force is in the XY axis. There are virtually NO 90 degrees (right angle) forces.

This kit will upgrade the original factory track bar.

These will provide GREATER FLEXIBILITY and DURABILITY while maintaining the proper angles for OPTIMAL Ride Quality.

 We use Prismatic Powders. So if you choose custom, you must go to their website (http://www.prismaticpowders.com/powder-coating-colors/), choose your color choice and provide us with the item # during check out.  Custom color choices could take up to 2 weeks to ship depending on availability of the powder coat.

Features:

• Heavy Duty Adjustable
• Perfect for 5" to 8" of Lift with No Track Bar Drop Bracket (10" with drop bracket)
• Provides Tighter Handling and Better Steering
• Available in Custom Color Choices

Includes:

Qty (1) TRACK BAR with Heim Joints

Qty (2) 7/8x7/8 Left & Right Rod Ends w/ Jam Nuts

Qty (1) TRACK BAR with 3-piece Teflon lined 7/8" Heim Joints and custom misalignments to allow the use of factory hardware

Technical Note:
Does not fit 2013 2500 models
