10-16" Lift Height Adjustable REAR Track Bar System for Dodge/RAM 4wd 2014-2027 2500

Description

Do you have 10-16" of lift and need a solution for the REAR track bar? This is it! Our design does 3 things....

1). Lengthens the rear track bar considerably. The longer the track bar, the less lateral movement the truck has as the suspension cycles.

2). Positions the track bar attaching point at the axle much higher for a zero-to-soft angle.

3). Replaces the factory track bar with a 2" OD, DOM, 1/4" HD wall tubing and each end utilizes a massive 1.25" 3-piece Teflon lined heim joint.

The bracket is made of 1/4" thick steel and heavily gusseted for strength and fully mig welded. Powder coated satin black. Compatible with coil spring and air bag rear suspension

NOTE: This is sold as a system and replaces the current track bar and bracket (if you have one). Cannot be used with other manufactures brackets mounted at axle.

Features:

-Perfect for lift heights of 10" - 16"
-1/4" wall DOM tubing and 1/4" steel plate construction on the bracket
-1.25" 3-piece Teflon lined heim joints
-Long travel system designed for taller lifts. Unlike "stretching" a setup that is not made for those specific heights

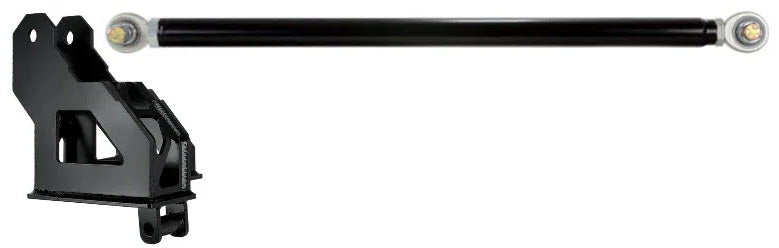

Includes:

(1) axle side bracket
(1) adjustable track bar
(2) 1.25" heims with jam nuts and misalignments
(1) hardware bag
