Designed for 0-4" of lift when used by itself and not paired with a track bar drop bracket or aftermarket pitman arm.
Supports 4 1/2" to 12" with a Track Bar Relocation Bracket and a Pitman Arm (required).
Features:
- The frame end re-uses the factory track bar bolt andwe supply custom misalignmentstoretain the factory hardwareso no drilling is required to change bolt size!
- We supply acustom machined and slotted tapered sleeveat the axle end to insert into the axle bracket to convert it to a 3/4" bolt. The slot ensures that as the bolt is tightened, it cinches into the factory tapered hole as tight as possible.
NO DRILLING OR MODIFICATIONS REQUIRED!! SIMPLY BOLT ON!!

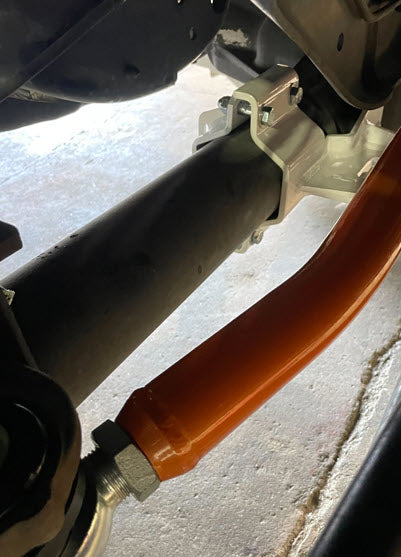

The bar is a massive 2" OD (the largest in the industry) with .250 wall thickness and is DOM (Drawn Over Mandrel fabrication).
BEEFY HEAVY DUTY 1.25” heims at both ends
so it is adjustable at BOTH ENDS.
Includes:
(1) Heavy Wall Double Adjustable track bar
(1) Bracket Plate
(1) Mounting Puck
(2) 1.25” Teflon lined heims with misalignments and jam nut.
(1) 3/4" grade 8 bolt with washers and nylock nut
(1) Double shear bracket at axle end to convert to heim joint
(2) Misalignment Spacers - axle end
(2) Custom misalignment spacers at frame end to retain factory bolt - frame end
