2005-2010 F250 F350 Super Duty Dual Steering Stabilizer - V1

  • Sale
  • Regular price $ 279.00



Stryker Made in America



Our Dual Steering Stabilizers are guaranteed to perfectly fit your year model truck.

Some competitors save cost by designing inferior low cost  components like bracket clamps sourced off the shelf from China. Stryker is proud of our MADE IN THE USA sourcing for both our USA Steel and finished welding, assembly and inspection here in Maryville, TN. If you see a kit with what appears to be off the shelf parts you might consider one exclusively designed for your truck.

Stryker designs and manufacturers our Fabricated Dual Steering Stabilizer brackets to match your truck. In OUR world of Rugged Style we designed these to match the quality and requirements of your Super Duty TRUCK!

Stryker ships every Dual Steering Stabilizer Kit that includes one of our ORD Level shocks with an Identity Badge optional label set for each of our available colors. Blue, Black and Red for you to apply if you like the Stylish Look!

F250 F350 Dual Steering Stabilizer



Stryker Off Road Design is a USA manufacturer of high end suspension components for your Ford Super Duty F250 F350 truck.

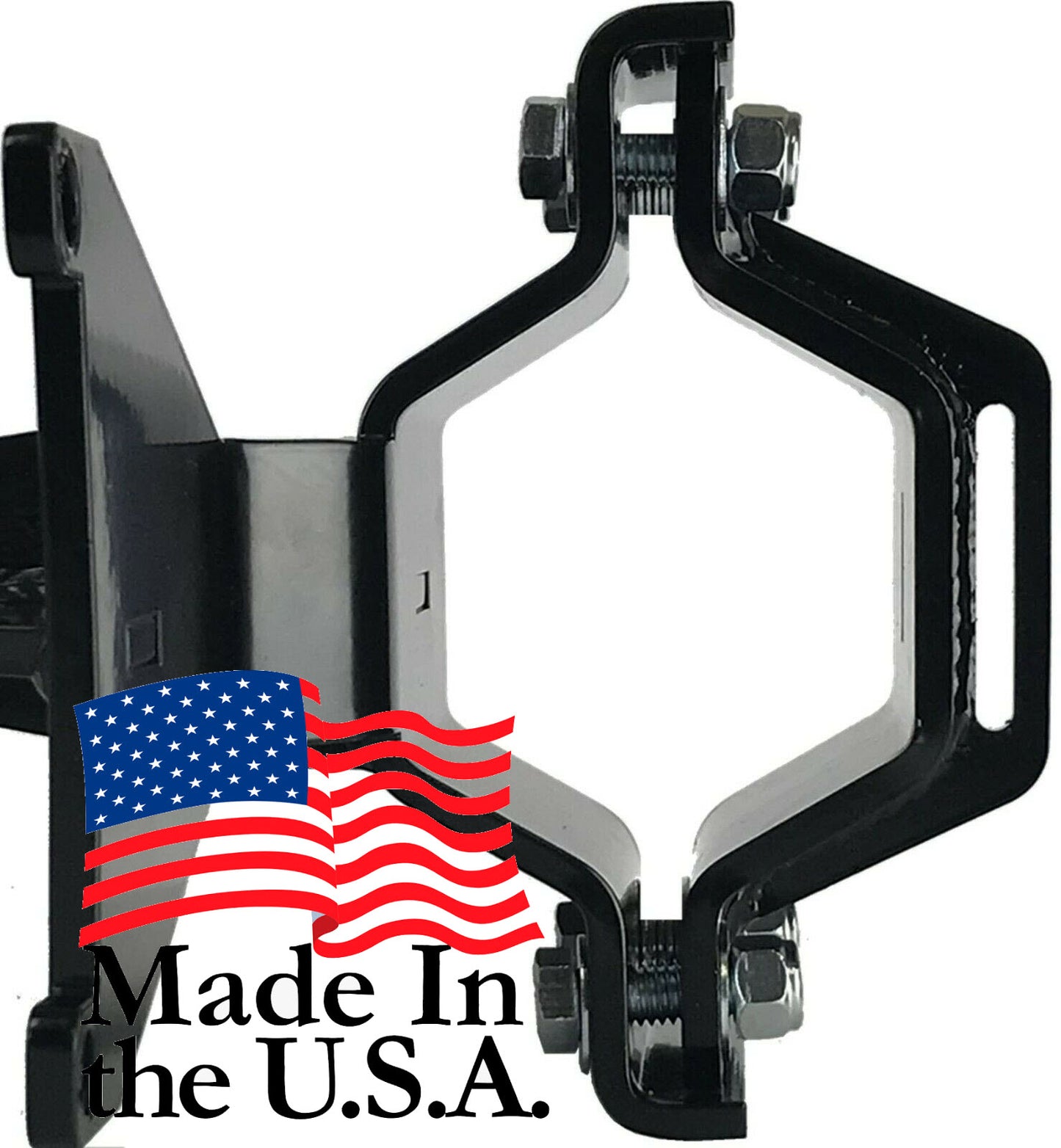

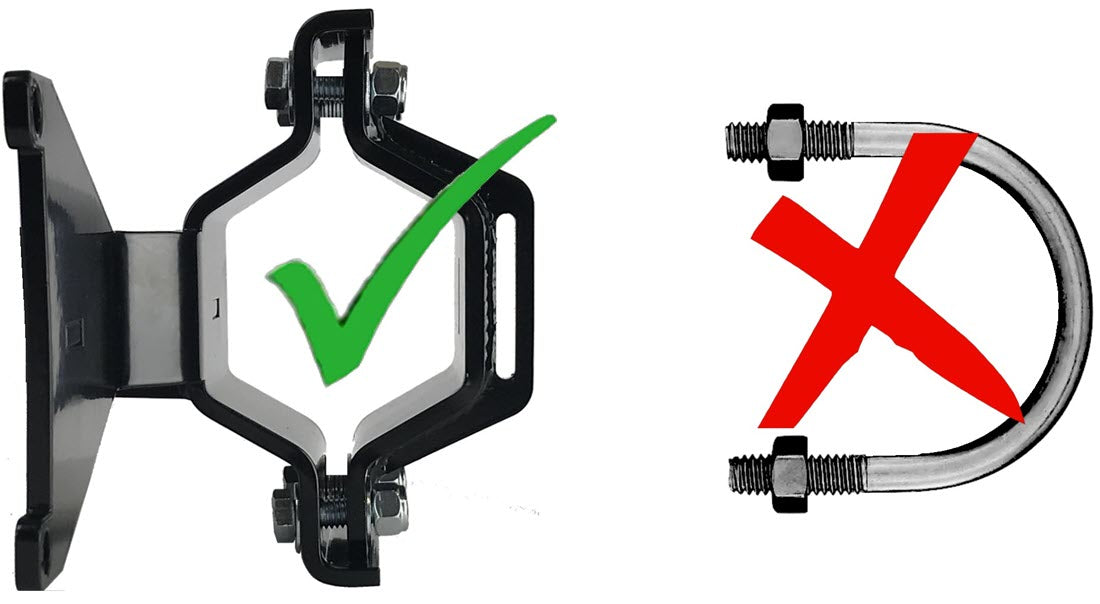

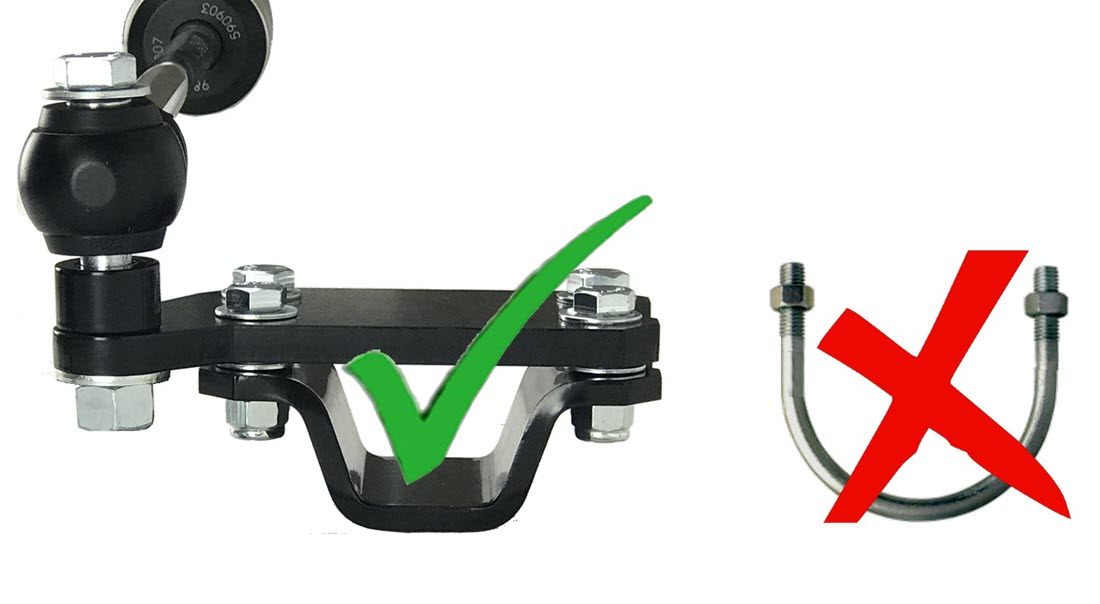

We don't cut corners! We are perfectionist! All of our products demonstrate OUR COMMITMENT to provide you with Engineered and Manufactured Rugged Designs with a SENSE OF STYLE! That is why our mounting brackets for our V1 and V2 F250 F350 Dual Steering Stabilizers are engineered with 3/8th inch and 1/4 inch USA STEEL CLAMPS! Some of our low cost competitors use a commercial U-BOLT in its place!  We will leave it to you to make an informed decision how you want to secure the front steering system of your F250 F350 Super Duty Truck.

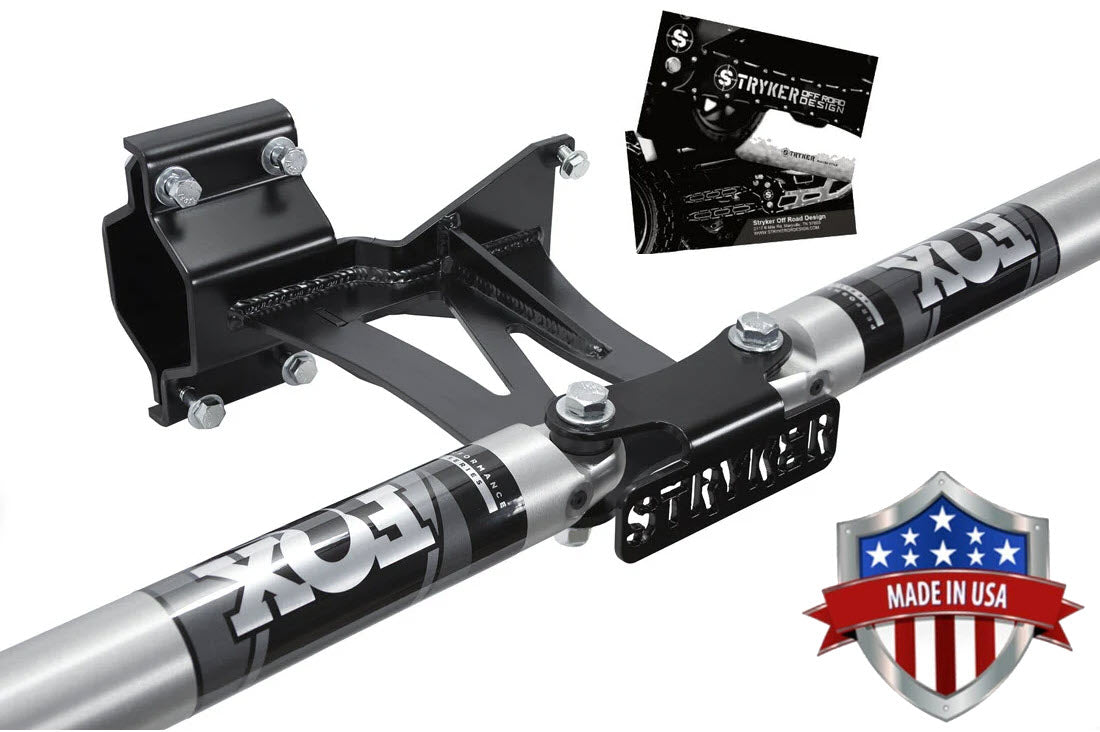

Fox 2.0 Dual Steering Stabilizer Assembled



SHOCK OPTIONS

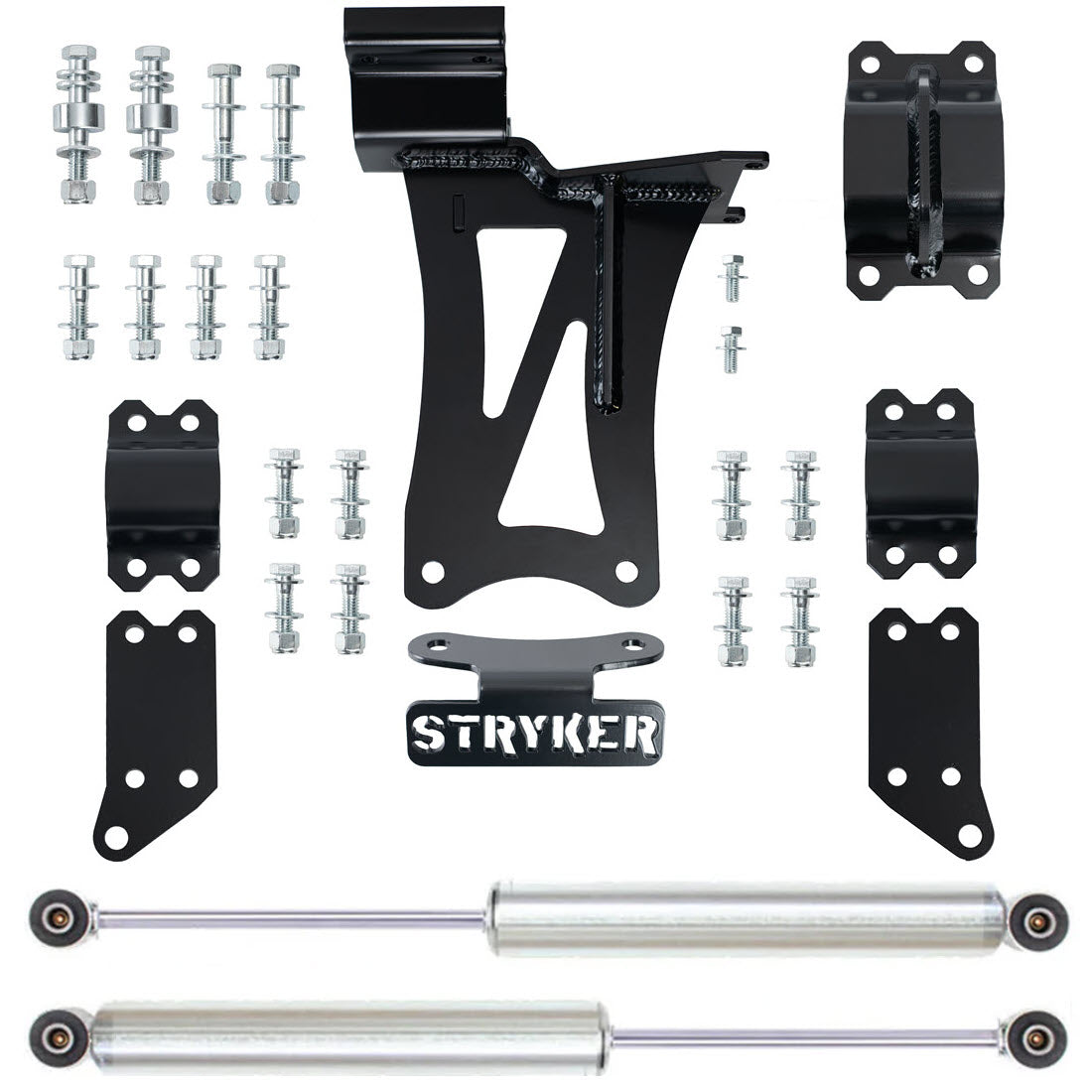

Stryker ORD-Level 2 Bilstein



Ford F250 F350 Steering Stabilizer Bilstein Shocks



This Stryker ORD Level 2 Shock upgrade is a special ordered Bilstein monotube shock that we stock exclusively for our kits. These deliver the performance Bilstein is known for. We took this shock to another level by taking the existing zinc plating, adding our own 3M clear protective film (as we found their zinc plating just wasn’t enough protection), then we choose a decal color that matches the lift color options you chose.


Stryker ORD-Level 3 Rough Country Monotube

Stryker Level 3 Monotube Steering Stabilizer Shocks




Stryker's ORD Level 3 Monotube Shocks are a T6061 brushed aluminum bodied MONOTUBE shock. They represent an OUTSTANDING combination of Ride Quality coupled with true Heavy Duty Performance when required.

These would best be described as equivalent to a Fox monotube for performance but with the added value of carrying a THREE YEAR Warranty and a clean uncluttered brushed aluminum look!

They have an internal floating piston for a very consistent performance. With the T6061 brushed aluminum body, these bodies can never rust.

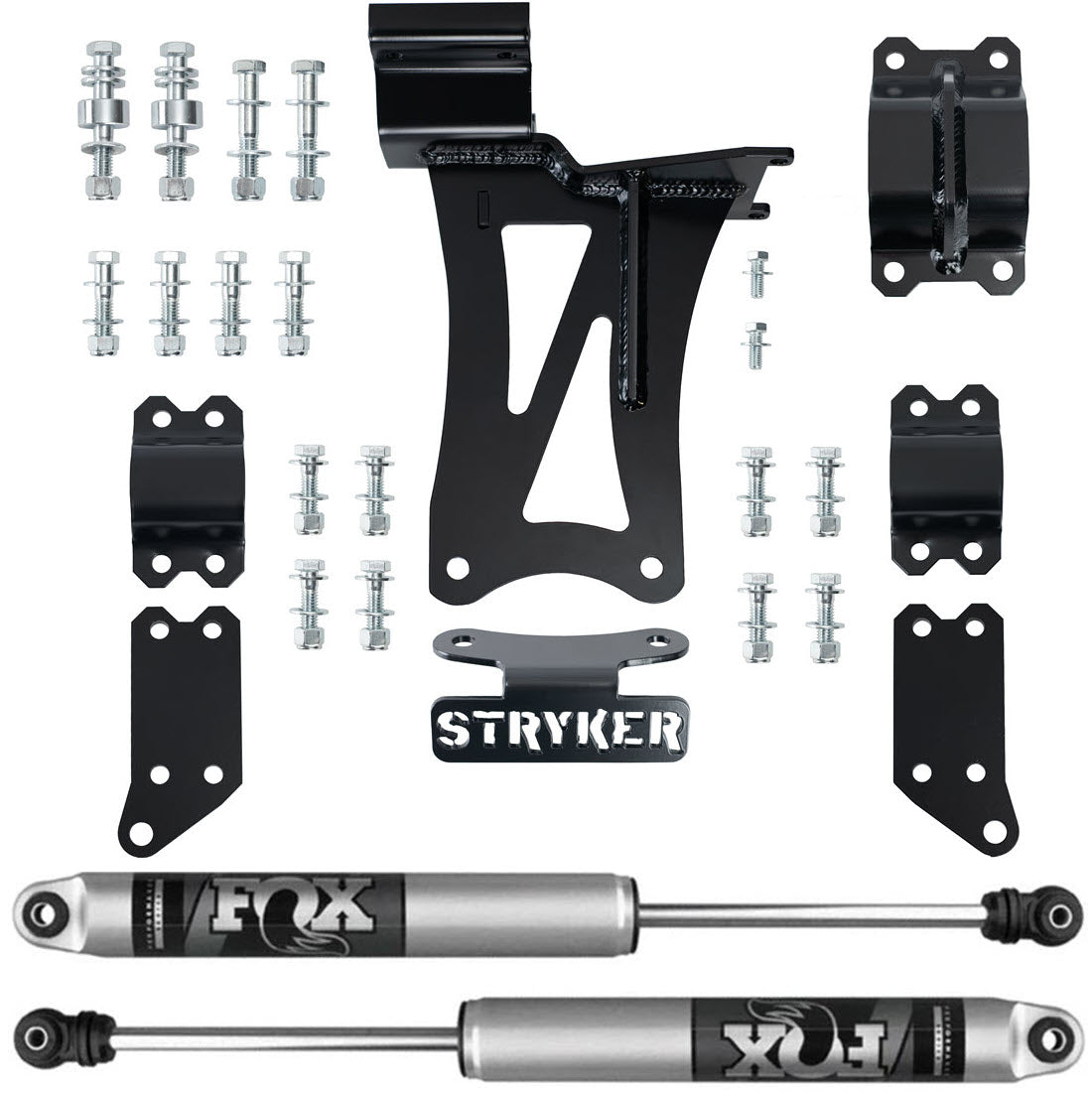

Stryker ORD-Level 4 Fox 2.0 Fox

f250 f350 dual steering stabilizer shocks

The body is a 2.0" impact extruded, CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time. Black-anodized, CNC-machined 6061-T6 billet aluminum ends. The shaft is 5/8" hard chrome plated heat treated alloy steel.

The piston is a race-developed high-flow piston design. The valving, seals, redundant sealing pack system main seal, wiper seal, scraper seal are all designed for superior performance.

The oil is JM92 Advanced Suspension Fluid for improved performance at variable temperatures. The bushings are quiet nitrile rubber allows for increased suspension a

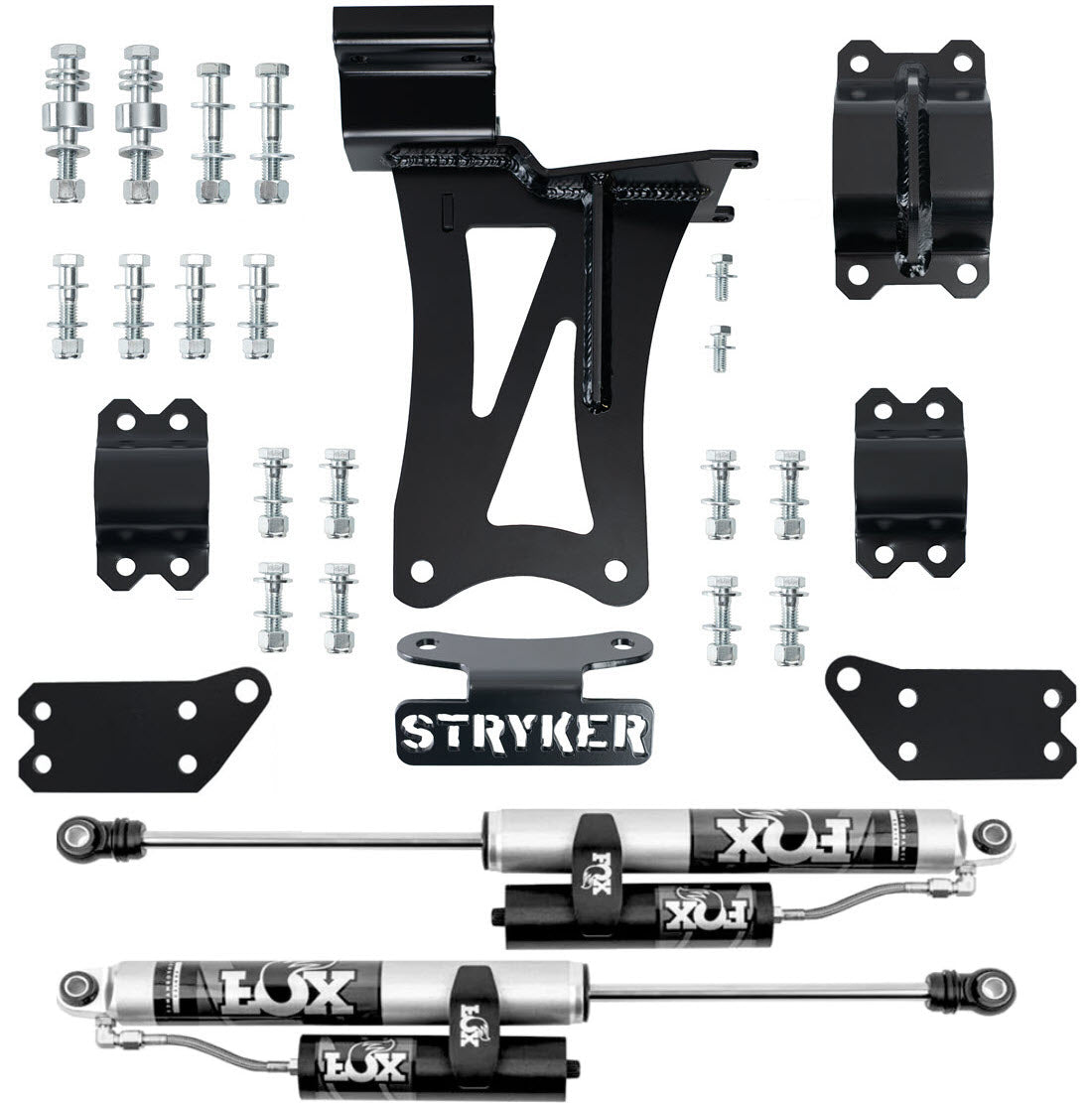

Stryker ORD-Level 5 Fox 2.0 Reservoir

This Level 5 Fox 2.0 Performance Series Reservoir, IFP aluminum smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling t

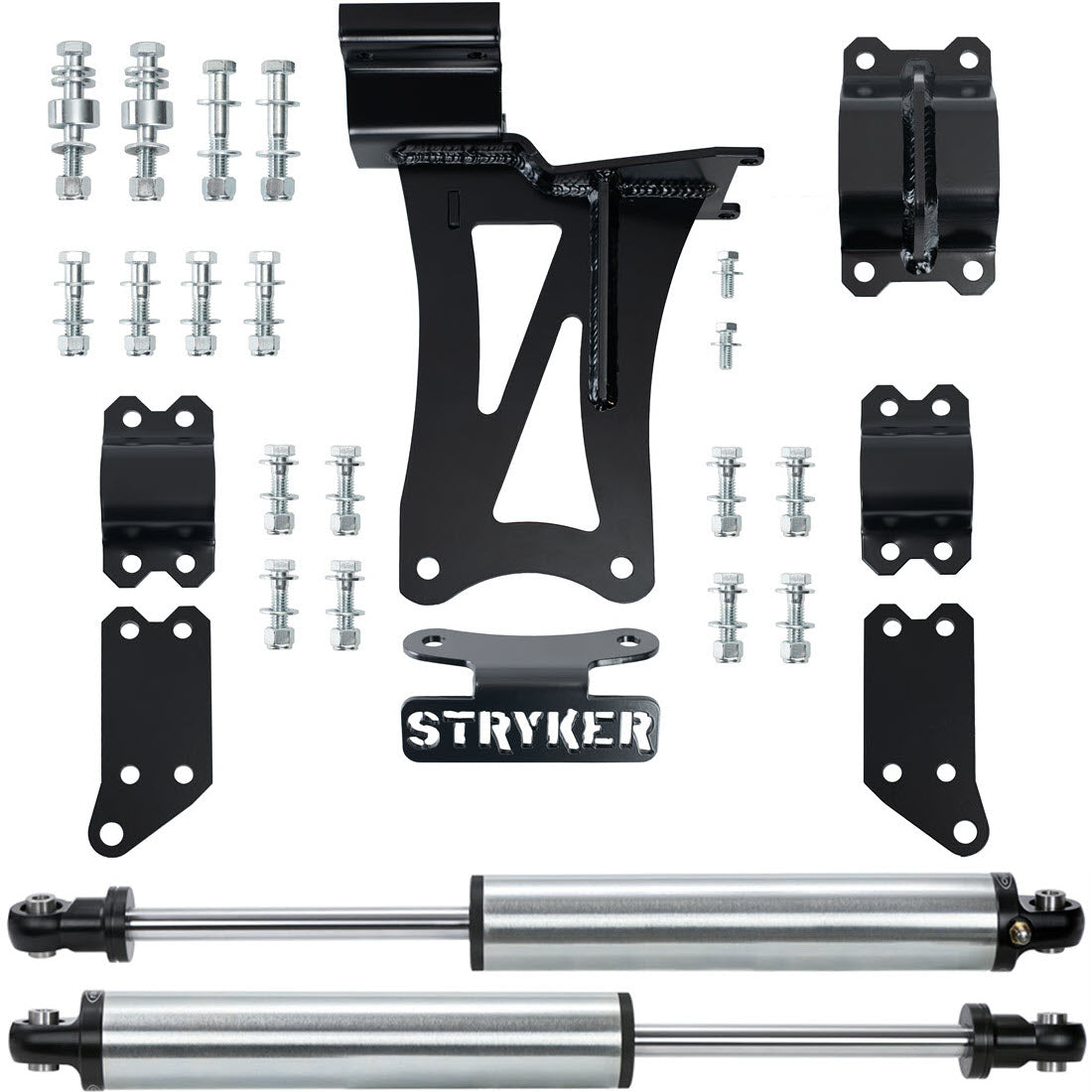

Stryker ORD-Level 6 2.5

2.5 inch L6 Stabilizer Shocks



Our 2.5" shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston. Level 6 2.5 shocks are only available as an option on our Dual Steering Stabilizers.

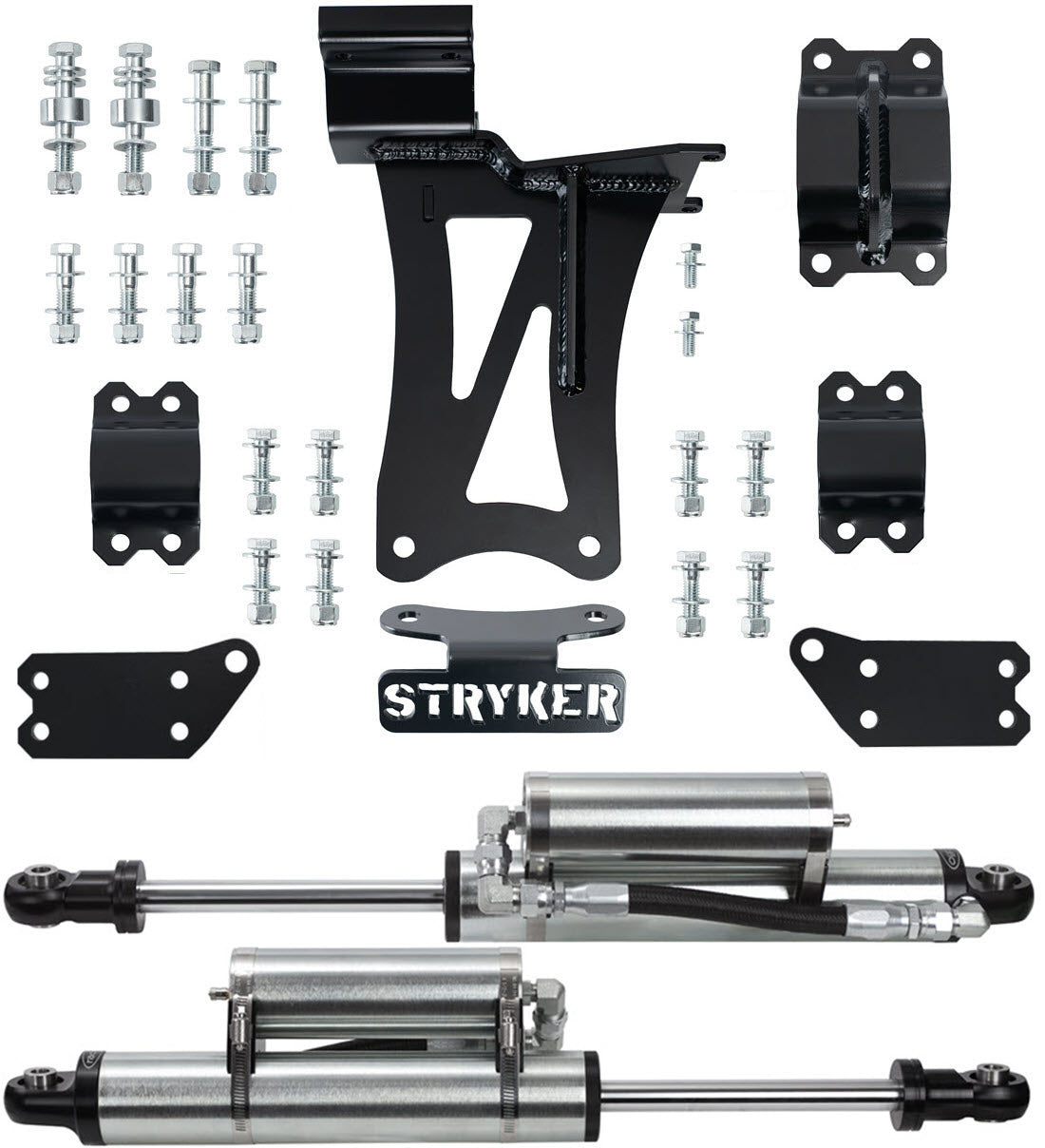

Stryker ORD-Level 7A 2.5 Piggyback Reservoir


Our 2.5" reservoir shocks have 2.5 DOM steel body, billet caps in anodized black come standard, as well as rubber bushings and sleeves for optimal ride quality. Our shocks are re-buildable and re-re-valveable. Our shocks have a hardened chrome 7/8 shaft and large body floating piston remote reservoir and Buna-N seals which are good up to 250 degrees. 90 degree swivel hose comes standard. Our remote reservoir ensures consistent performance for even the most demanding off-road adventure.



Features:

  • LIFETIME Replacement Warranty! (excludes powder coat).
  • MADE IN THE USA.
  • CAD Designed and Engineered for the your Super Duty Rugged Style.
  • Full SEAM Craftsman MIG Welded for the ULTIMATE in Strength and Durability.

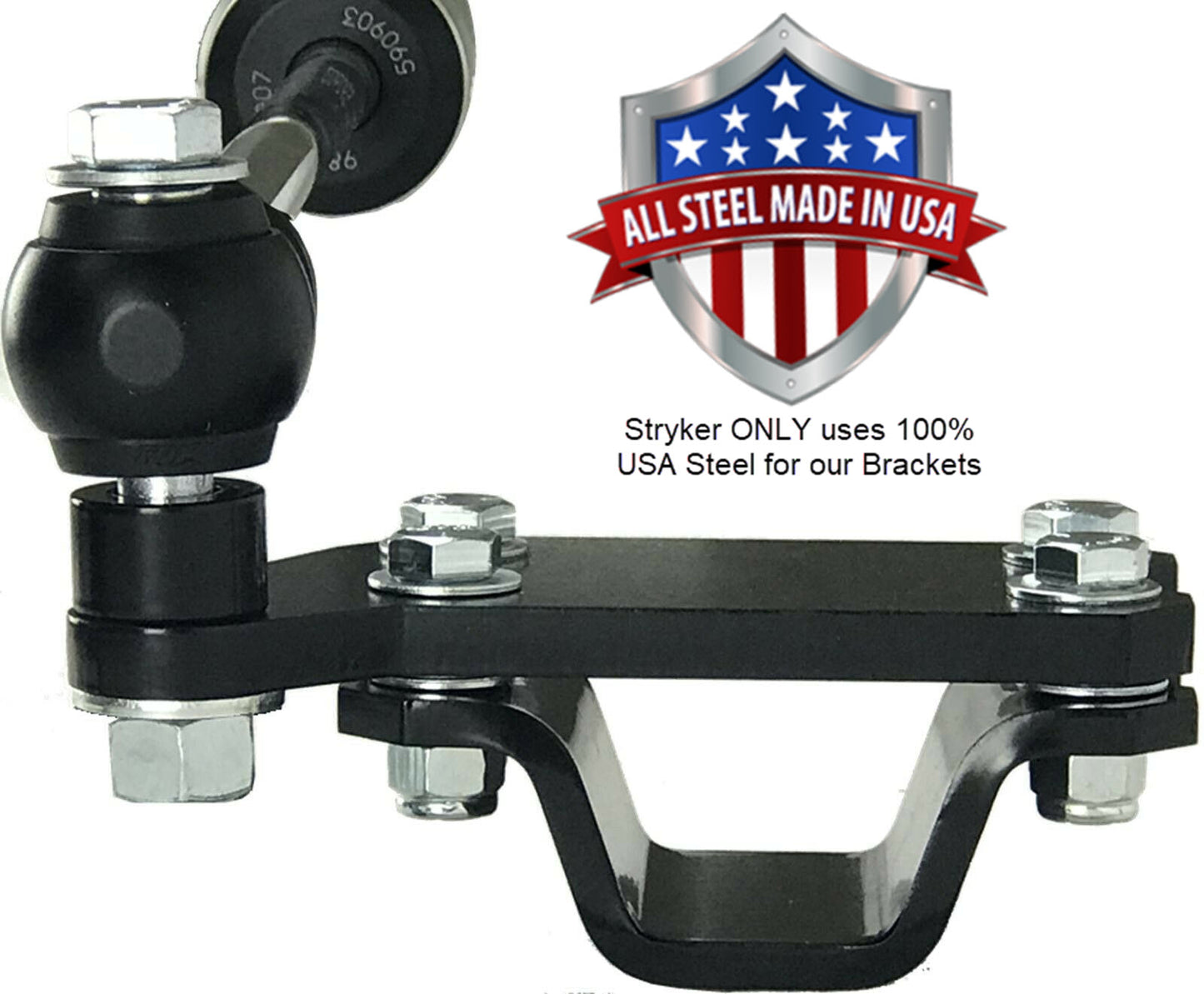

  • 1/4" USA STEEL for the confidence  you need!
  • Stryker's Craftsman Welders build these in HOUSE here in Maryville, TN!
  • Powered Coated in the USA under strict Stryker oversight and inspection.
  • And designed for the EXACT Truck Model and Year to ensure all the measurements AND Components MATCH the requirement. Not a bunch of OFF THE SHELF hardware to make something kind of work!
    Description:

    Note: Requires a leveling kit and/or at least 2 inches of lift.

    The Stryker Off Road Design Dual Steering Stabilizer gives your truck better handling while adding to the look of the suspension!  Our steering stabilizer provides better handling and control of oversized tires by reducing bump steer and front end vibration.  It also reduces ball joint and tie rod wear and tear, and is an easy bolt on installation!

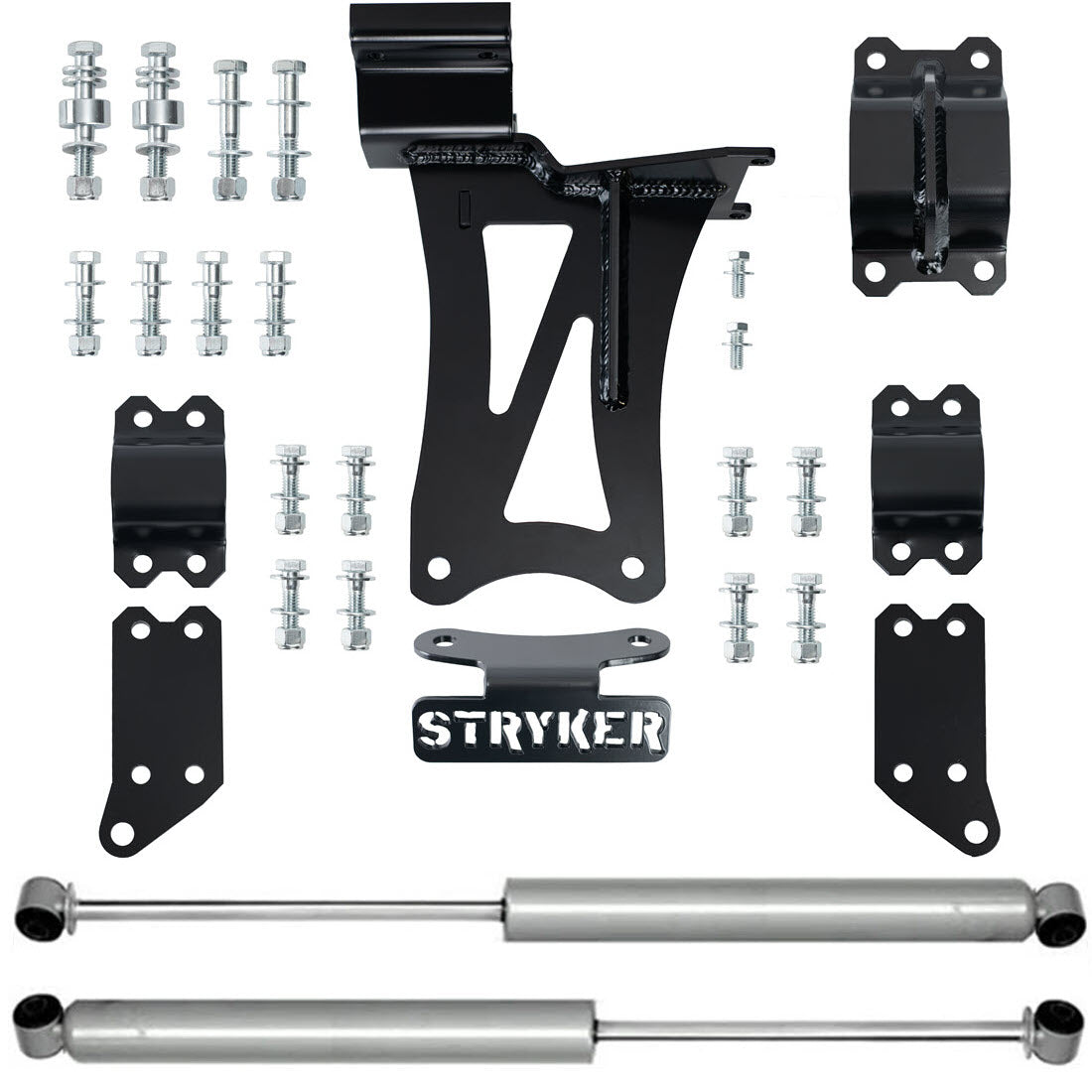

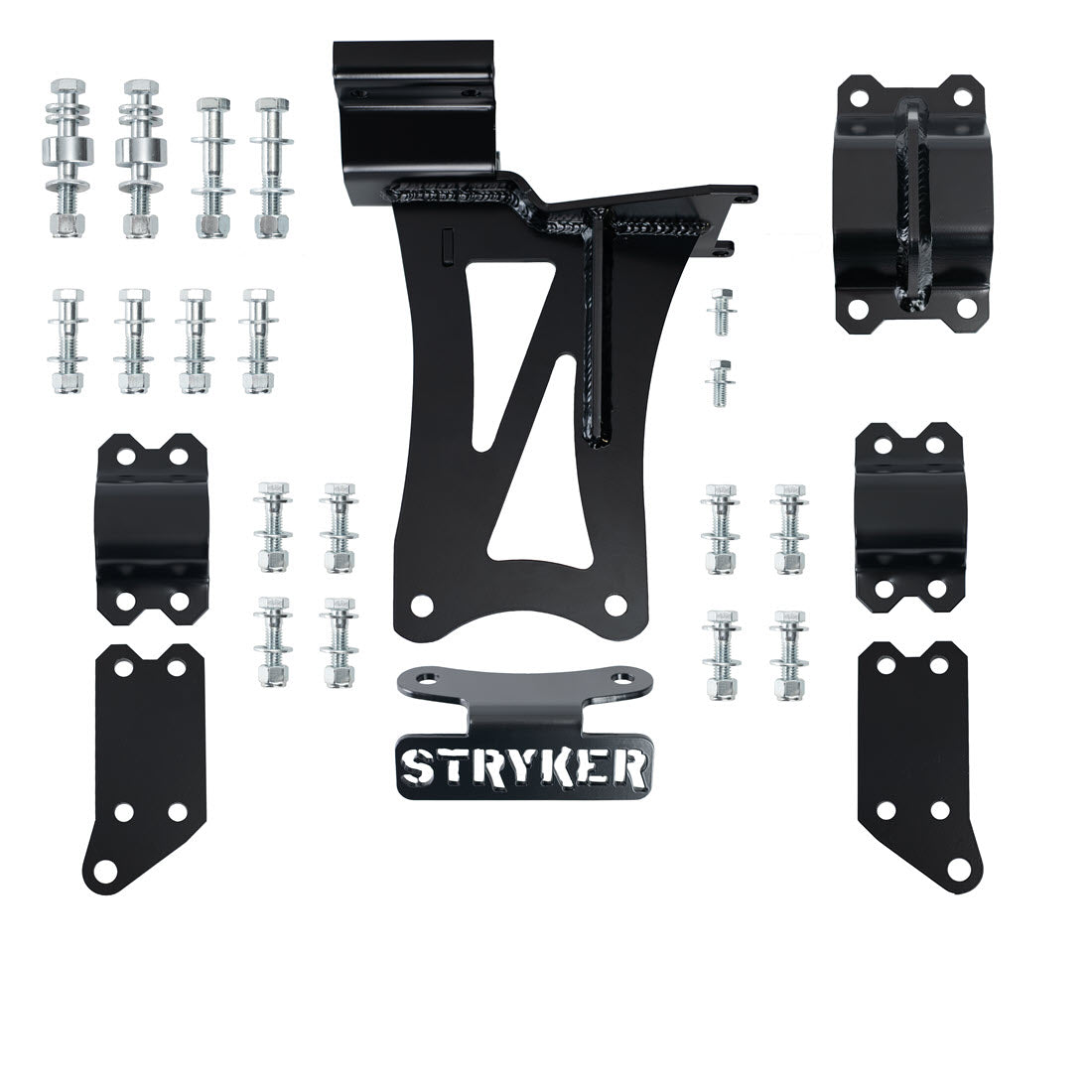

    Kit Contents:

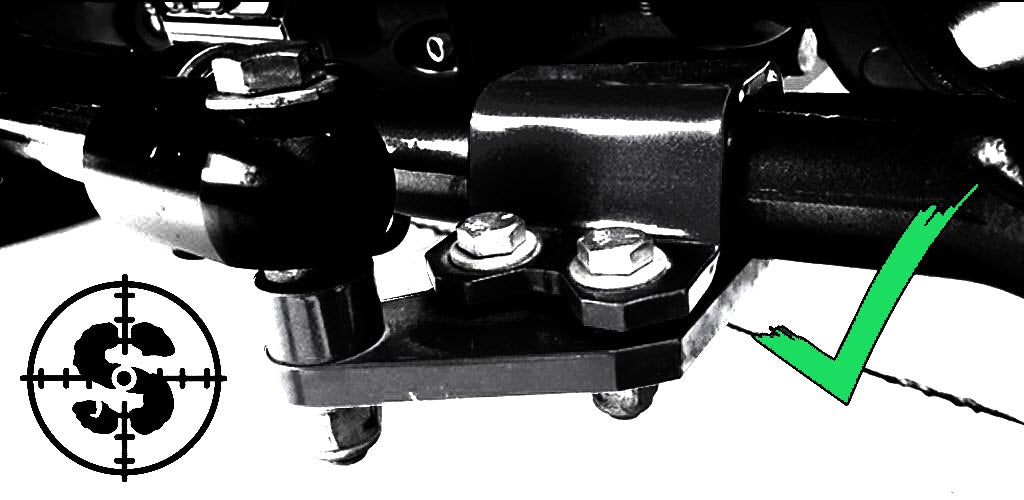

    (2) 3/8" Tie Rod Clamp Plates
    (2) 1/4" Tie Rod Clamps
    (1) Center Mount Plate
    (1) Optional Center Identity Face Plate
    (1) Rear Clamp for Center Mount Plate
    (1) "Stryker" Front Plate
    (2) Spacers (may not be needed)
    (2) Stabilizer Cylinders (if selected)
    All necessary hardware

    Technical Notes:

    Only works for models with 2 inches or more of lift.

    ***ADDITIONAL FEES MAY APPLY TO CUSTOM COLORS - CONTACT FACTORY***



    INSTALLTION INSTRUCTIONS

    V1 DUAL STEERING STABILIZER FOR F250 F350 F450

    F250 F350 F450 V1 Dual Steering Stabilizer Installations Instructions



    Stryker Off Road Design V1 Dual Steering Stabilizer gives your truck better handling. Our V1 stabilizer includes Distinctive Striker Badging for a great look. The V1 Kit is designed for easy installation requiring just a few hand tools and a few hours!



    Click here to Download V1 Installation Instructions    Download Dealer Application

    F250 F350 F450 V1 Dual Steering Stabilizer Install

    Stryker Off Road Design F250 F350 F450 V1 Dual Steering Stabilizer Installation Video Courtesy of Motor Head.

    Stryker Off Road Design Dual Steering Stabilizer gives your truck better handling. Our V1 stabilizer includes Distinctive Striker Badging for a great look. The V1 Kit is designed for easy installation requiring just a few hand tools and a few hours!

    Motor Head YouTube channel https://www.youtube.com/channel/UCOjd...



    Feel free to contact us at sales@strykerordesign.com or
    (865) 233-0076 with any questions!
